1332360-CH
Marathon Special Products Power Distribution Blocks, 133 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

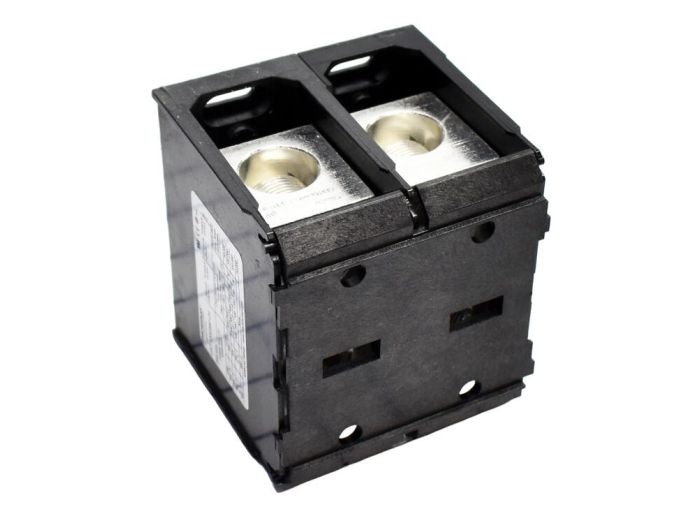

1332360-CH Marathon Special Products Power Distribution Blocks, 133 Series
Splicer Block, 2-P, 420A, Box/Box,
MFG Item Number
1332360CH
Item Number
1332360-CH
Series
More specs
Discontinued by Manufacturer
Recommended Replacement Products
The original part is discontinued by the manufacturer. Our team has identified the following equivalent replacement.
Description
Power Distribution Blocks, 133 Series
Item #
1332360-CH
Splicer Block, 2-P, 420A, Box/Box,
133 Series Information
- 60 to 2280 Amps
- 600 Volts AC/DC
- High SCCRs 35 to 100kA with Fusing or Circuit Breakers
- Snap‑On Cover Type Available
Specifications
| Manufacturer Part Number | 1332360CH |
|---|---|
| Manufacturer | Marathon Special Products |
| Product Series | 133 |
| Family Series | Marathon Special Products Power Distribution Blocks, 133 Series |
| Description | Splicer Block, 2-P, 420A, Box/Box, Line & Load: (1)600MCM-2AWG, Cu/Al, Includes Hinged Protective Cover |
| Number of Poles | 2 |
| AC Voltage | 600 VAC |
| Current Rating | 420 A |
| Number of Inputs per Pole | 1 |
| Number of Outputs per Pole | 1 |
| Electrical Connection | Box Lug/Box Lug |
| Mounting | Panel Mount |
| Line Side Wire Range | 600 kcmil-2 AWG |
| Output Wire Range | 600 kcmil-2 AWG |
| Cover Included | Yes |
| Composition | Thermoplastic |
| Color | Black |
| Approvals | CE, CSA, UL |
| Net Weight | 1.555 lbs |
| Gross Weight | 1.555 lbs |
