Compact to multi bay PLC enclosures with clean layout, labeled terminations, and serviceable wireways. We support leading platforms (e.g., ABB, Siemens, etc.) and can match your preferred component ecosystem.
Custom Control Panels
Design, Build & Test
Control Panel Solutions
State Motor & Control Solutions can design and fabricate custom control panels and automation systems for a variety of industries and applications. Panels are built to the applicable UL specifications (we are UL 508 Certified), NFPA 79, and NEC requirements, with documented testing and complete as builts. We spec, build, and ship on a timeline that supports your project.
Design to Build Capability
- Documentation & FAT Included
- UL/NFPA/NEC Expertise
- OEM Build to Print & Serial Production
- St. Louis Based, Nationwide Shipping
Get Your Free Custom Quote
What We Build
FAQs

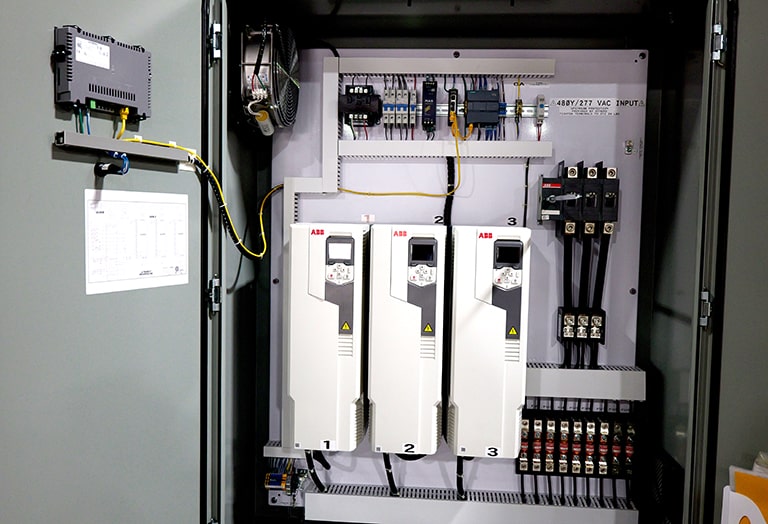

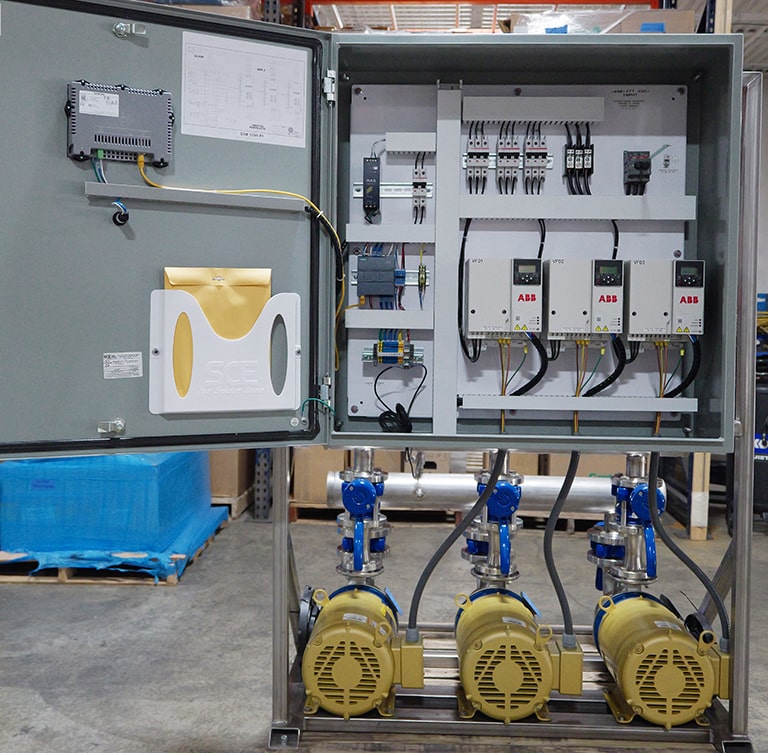

Single drive and multi drive solutions, bypass and line/reactor options, enclosure ventilation/thermal design, and attention to harmonics and upstream protection. Ideal for pumps, fans, conveyors, and mixers.

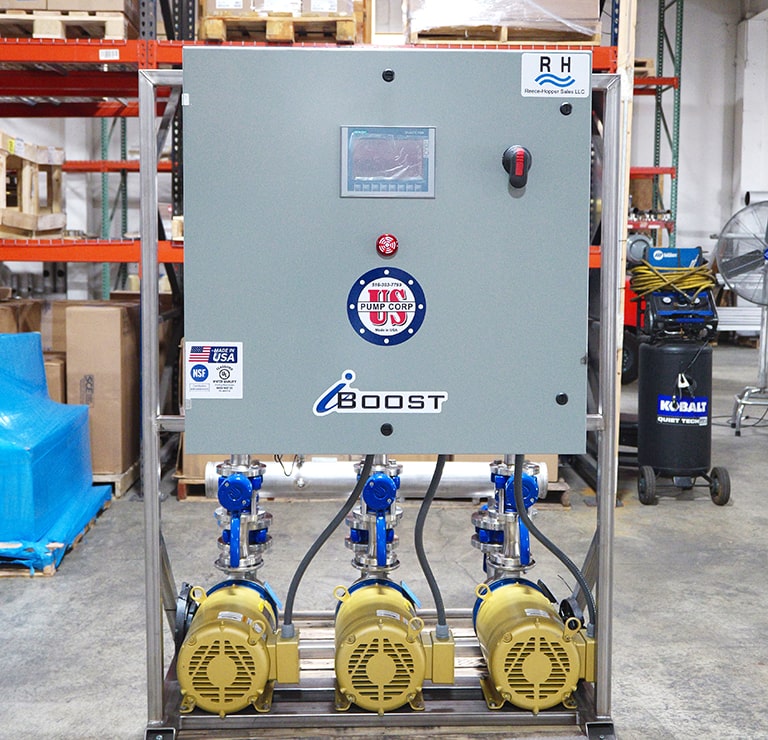

Level, pressure, and flow control with discrete/analog I/O, telemetry/remote alarming, and operator interface options. Skid mounted or wall mount, NEMA ratings to suit the environment.
Across starters, overloads, soft starts, and interlocks—engineered for maintainability and safety. We’ll label SCCR and short circuit ratings clearly on the nameplate and documentation.
FAQs
Panel mounted or pedestal HMIs with well organized pushbuttons, pilot lights, and E Stops. Options for data logging and remote visibility per your standards.
For food & beverage and harsh environments, we build in stainless with hygienic hardware, sealed penetrations, and appropriate gasketing to maintain the specified ingress rating.
Send your drawings and revision control—we’ll build repeatable panels with consistent labeling, documented test procedures, and reliable lead times for your production cadence.
Compliance, Documentation & Labeling
Your panel can be produced to applicable UL industrial control panel requirements, NFPA 79 (Industrial Machinery), and relevant NEC sections (e.g., Article 409). We provide:
- As-built drawing package: schematics, layouts, I/O lists, and wire labels
- Nameplate data: voltage, FLA, SCCR, enclosure rating, and wire schedules
- Test records: point to point checks, insulation/continuity, and power up validation
- Bill of materials with manufacturer part numbers
About UL 508
If your specification requires a UL 508 certified listed panel, let us know in your request so we can confirm scope and labeling needs before build release. We’ll align the documentation and inspection steps accordingly.
Our Process (Fast, Documented, Repeatable)
-
Requirements & Scope
We review environment, ingress rating, heat load, hazard classification, and code constraints. We also provide prints.
-
Design & Component Selection
We select components from trusted brands to meet the spec, availability, and maintainability targets.
-
CAD & Documentation
Detailed schematics, panel layouts, I/O lists, and labeling conventions are finalized before build.
-
Fabrication & Wiring
Clean routing, labeled conductors, tidy ducting—everything laid out for serviceability.
-
Inspection & FAT
Point to point verification, torque checks, and functional power up per your test plan.
-
As Builts & Shipment
We ship with complete documentation and nameplate data; crating/packaging is tailored to protect the build.
-
Commissioning Support
Remote/onsite support available for bring up, minor adjustments, and turnover.
Industries We Serve
We offer factory-authorized warranty service for multiple manufacturers, including:
- OEM Machinery & Material Handling
- Water & Wastewater
- Food & Beverage / Washdown
- Building Systems & Facilities
- Packaging & Converting
- Chemicals & Plastics
- Power, Utilities & Energy
- And more!
Why State Motor & Control Solutions
- Single source partner: from design to build to FAT, with one accountable team.
- Documentation first: complete as builts and test results ship with every panel.
- Standards fluency: UL/NFPA/NEC requirements built into our process.
- OEM friendly: build to print discipline, serial consistency, and revision control.
- Sensible timelines: we quote honest lead times and offer expediting where feasible.
- Nationwide shipping from St. Louis: protective crating, carrier coordination, and delivery updates.
Frequently Asked Questions
What We Build
Both. Send a complete drawing set for build to print, or start from requirements, and we’ll design, review, and document drawings before fabrication.
If your project requires a UL 508A listed panel label, let us know in your RFQ. We’ll confirm listing requirements, documentation, and inspection steps up front.
As built schematics, layout drawings, bill of materials, test records, and a complete nameplate with SCCR, enclosure rating, and key electrical data.
What We Build
Lead time depends on scope and component availability. Share your needed by date—we’ll propose a plan and highlight any expedite options.
Yes—remote and onsite commissioning support is available. We can also coordinate with your controls integrator.
We build and ship nationwide from St. Louis, with protective crating and carrier coordination.
