Series ACS550
ACS550-U1-023A-4
MFG #: 3AUA0000002189

Create a free account or sign in to unlock our best online pricing!

Your account pricing is now applied.

866-354-0063 [email protected]
866-354-0063 [email protected]
Search
Request Quote
Cart
ABB
Series
ACS550
ACS550-U1-023A-4 ABB Drives, ACS550 Series
MFG #:
3AUA0000002189
ACS550 AC Drive, 3-380-480V In, 15HP, 23A, Type 1/IP21, 1.1 overload, Advanced, 18.5 x 4.9 x 8.7 in, Wall
View Full Specs

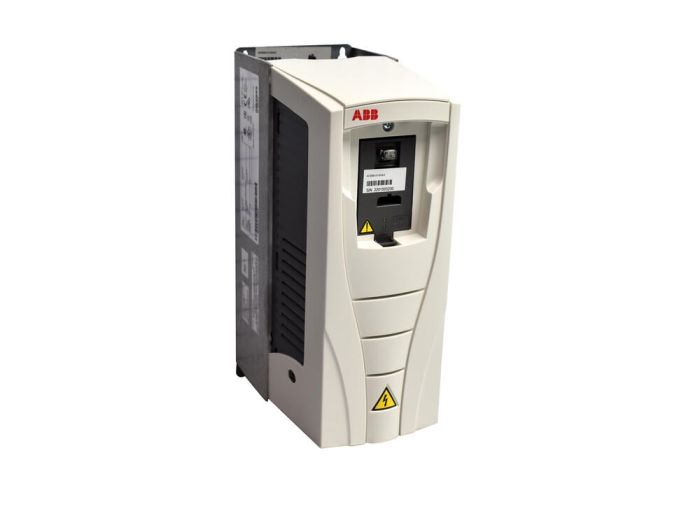

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

ABB
Series
ACS550

ACS550-U1-023A-4 ABB Drives, ACS550 Series

MFG #:
3AUA0000002189
Item Number
ACS550-U1-023A-4
ACS550 AC Drive, 3-380-480V In, 15HP, 23A, Type 1/IP21, 1.1 overload, Advanced, 18.5 x 4.9 x 8.7 in, Wall
View Full Specs

Discontinued by Manufacturer

Request Lead Time

Specifications

Specifications
Manufacturer Part Number 3AUA0000002189
Manufacturer ABB
Product Series ACS550
Family Series ABB Drives, ACS550 Series
Phase 3
HP (Constant Torque Rating) 10 hp
HP (Variable Torque Rating) 15 hp
Amps (Constant Torque Rating) 15.4 A
Amps (Variable Torque Rating) 23 A
Brake DC Injection, Dynamic Braking Transistor Optional (External)
Closed Loop Optional
AC Line Regenerative No
Operator Controls Keypad Included
NEMA Rating NEMA 1
Motor Control-Max Level Open Loop Vector (Sensorless Vector)
Mounting Wall
Nominal Input Voltage 380 VAC, 415 VAC, 480 VAC
AC Voltage 380-480 VAC
Frequency 500 Hz
Frame Size R2
Protection Rating IP21
Dynamic Braking Optional (External)
Height 18.5 "
Width 4.9 "
Depth 8.7 "
Comments Advanced Control Panel incl. graphic backlit display capable of displaying 3 values or bar graphs.
H x W x D 8.70 " x 4.90 " x 18.50 "
Net Weight 19.5 lbs
Gross Weight 34 lbs
