CIMR-VU2A0012FAA
Yaskawa Drives, V1000 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

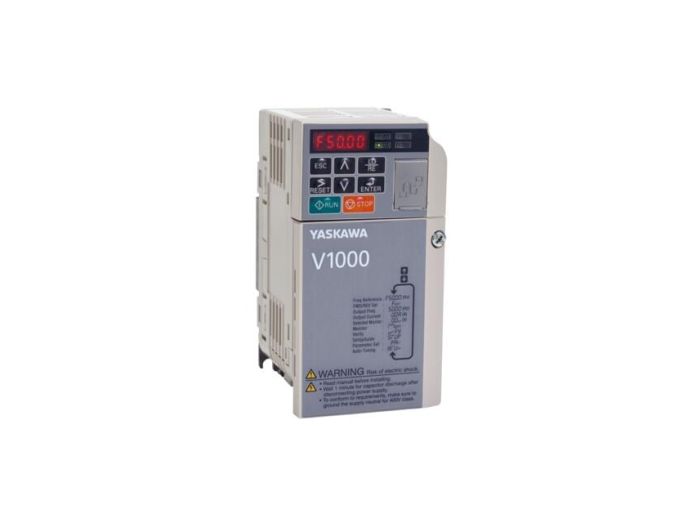

CIMR-VU2A0012FAA Yaskawa Drives, V1000 Series
Drive, AC, 3HP, 240V, 3PH, 11A, CT,
MFG Item Number
CIMR-VU2A0012FAA
Series
More specs
Discontinued by Manufacturer
Recommended Replacement Products
The original part is discontinued by the manufacturer. Our team has identified the following equivalent replacement.
Description
Drives, V1000 Series
Item #
CIMR-VU2A0012FAA
Drive, AC, 3HP, 240V, 3PH, 11A, CT,
V1000 Series Information
- Compact Drive
- Open Loop Vector
- 1/4~25 HP
- 240V or 480V, 1PH & 3PH
- NEMA 1
Specifications
| Manufacturer Part Number | CIMR-VU2A0012FAA |
|---|---|
| Manufacturer | Yaskawa |
| Product Series | V1000 |
| Family Series | Yaskawa Drives, V1000 Series |
| Description | Drive, AC, 3HP, 240V, 3PH, 11A, CT, N1, 3HP/12A, VT 5.89in.Hx4.25in.Wx5.41in.D |
| Phase | 3 |
| HP (Constant Torque Rating) | 3 hp |
| HP (Variable Torque Rating) | 3 hp |
| Amps (Constant Torque Rating) | 11 A |
| Amps (Variable Torque Rating) | 12 A |
| Brake | DC Injection, Dynamic Braking Transistor Included |
| Closed Loop | No |
| AC Line Regenerative | No |
| Operator Controls | Built In |
| NEMA Rating | NEMA 1 |
| Motor Control-Max Level | Open Loop Vector (Sensorless Vector) |
| Mounting | Panel |
| Nominal Input Voltage | 208 VAC, 240 VAC |
| AC Voltage | 200-240 VAC |
| Frequency | 400 Hz |
| Dynamic Braking | Included |
| Height | 5.89 " |
| Width | 4.25 " |
| Depth | 5.41 " |
| Net Weight | 5 lbs |
| Gross Weight | 5 lbs |
