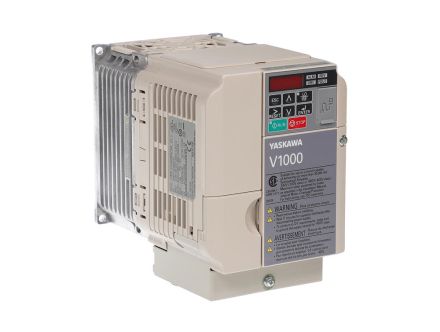

CIMR-VU4A0005FAA Yaskawa Drives, V1000 Series

Drive, AC, 2HP, 480V, 3PH, 4.8A, CT,

MFG Item Number

CIMR-VU4A0005FAA

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

CIMR-VU4A0005FAA Yaskawa Drives, V1000 Series

Name: CIMR-VU4A0005FAA Yaskawa Drives, V1000 Series
Brand: Yaskawa
SKU: CIMR-VU4A0005FAA-YASK

Drive, AC, 2HP, 480V, 3PH, 4.8A, CT,

MFG Item Number

CIMR-VU4A0005FAA

Series

V1000

More specs

Discontinued by Manufacturer

Request Lead Time

Description

Drives, V1000 Series

Item #

CIMR-VU4A0005FAA

Drive, AC, 2HP, 480V, 3PH, 4.8A, CT,

V1000 Series Information

Compact Drive
Open Loop Vector
1/4~25 HP
240V or 480V, 1PH & 3PH
NEMA 1

The V1000 is a world‑class compact current vector drive that defines a new world standard. Demands for efficient production and better maintainability are on the rise, spurred by global competition. Yaskawa drives have earned a reputation for high performance, high functionality, and high quality.

Links

Videos

Specifications

Specifications
Manufacturer Part Number	CIMR-VU4A0005FAA
Manufacturer	Yaskawa
Product Series	V1000
Family Series	Yaskawa Drives, V1000 Series
Description	Drive, AC, 2HP, 480V, 3PH, 4.8A, CT, N1 3HP, 5.4A, VT 5.89in.Hx4.25in.Wx6.06in.D
Phase	3
HP (Constant Torque Rating)	2 hp
HP (Variable Torque Rating)	3 hp
Amps (Constant Torque Rating)	4.8 A
Amps (Variable Torque Rating)	5.4 A
Brake	DC Injection, Dynamic Braking Transistor Included
Closed Loop	No
AC Line Regenerative	No
Operator Controls	Built In
NEMA Rating	NEMA 1
Motor Control-Max Level	Open Loop Vector (Sensorless Vector)
Mounting	Panel
Nominal Input Voltage	380 VAC, 415 VAC, 480 VAC
AC Voltage	380-480 VAC
Frequency	400 Hz
Dynamic Braking	Included
Height	5.89 "
Width	4.25 "
Depth	6.06 "
H x W x D	6.15 " x 4.30 " x 6.20 "
Net Weight	3.42 lbs
Gross Weight	5 lbs
