S201M-B10 ABB Circuit Breakers, S200M Series
Circuit Breaker, 1-P, 10A/277VAC, B,
MFG Item Number
S201M-B10
ABB

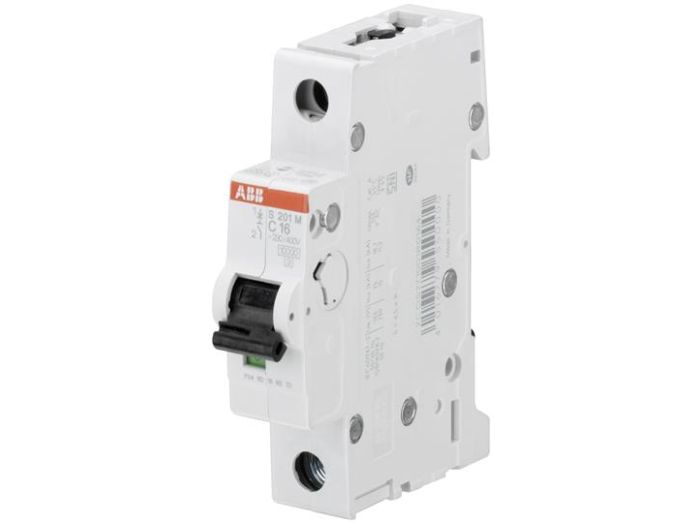

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

S201M-B10 ABB Circuit Breakers, S200M Series

Circuit Breaker, 1-P, 10A/277VAC, B,
MFG Item Number
S201M-B10
ABB
Series
S200M
More specs

Discontinued by Manufacturer

Request Lead Time
Recommended Replacement Products

The original part is discontinued by the manufacturer. Our team has identified the following equivalent replacement.

ST201M-B10
ST201M-B10
ABB Circuit Breakers, ST200M Series
FAZ-B10/1-SP
FAZ-B10/1-SP
Eaton Circuit Breakers, FAZ Series

Description

Circuit Breakers, S200M Series
Item #
S201M-B10
Circuit Breaker, 1-P, 10A/277VAC, B,

S200M Series Information

  • B, C, D, K, Z Trip Characteristics
  • 0.5 to 63 Amps
  • DIN Rail Mount
  • Bottom Fitting Auxiliary Contact
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in B,C,D,K,Z characteristics, configurations 1P,1P+N,2P,3P,3P+N,4P, breaking capacities up to 10 kA at 230/400 V AC and rated currents up to 63A. All MCBs of the product range S200M comply with IEC/EN 60898‑1 and IEC/EN 609 47‑2, allowing the use for residential, commercial and industrial applications. Bottom‑fitting auxiliary contact can be mounted on S200M to save 50% space.

Links

Specifications

Specifications
Manufacturer Part Number S201M-B10
Manufacturer ABB
Product Series S200M
Family Series ABB Circuit Breakers, S200M Series
Description Circuit Breaker, 1-P, 10A/277VAC, B, 6KAIC, UL1077 Recognized
Poles 1
Current Rating 10 A
Max Voltage 480 VAC, 60 VDC
Trip Curve B
Trip Unit Fixed Thermal / Fixed Magnetic
Mounting DIN Rail
Neutral Pole No
Terminal Type Screw
Auxiliary Switch Optional
Shunt Trip Optional
Undervoltage Release Optional
Alarm Switch Optional
UL Standard 1077
Approvals CSA, UL
Net Weight 0.2756 lbs
Gross Weight 0.2756 lbs
