S201UP-K5 ABB Circuit Breakers, S200UP Series

MFG #:

S201UP-K5

Circuit Breaker, 1-P, 5A/277V, K, 480Y/277VAC, UL489 Listed, 10KAIC, DIN Mount

View Full Specs

Skip to the end of the images gallery

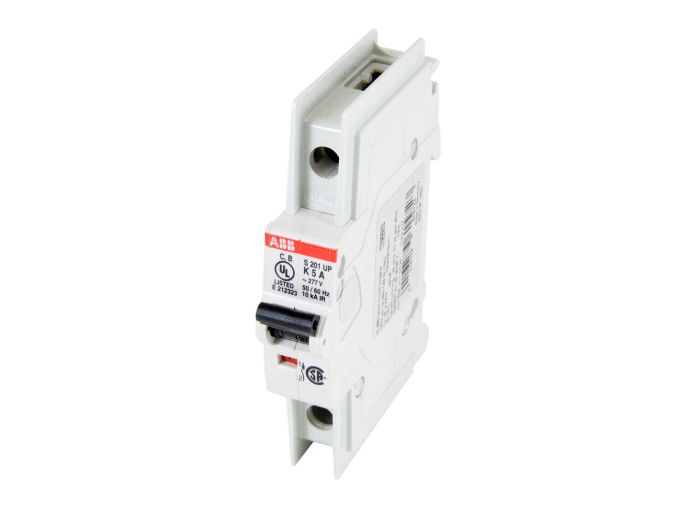

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

S201UP-K5 ABB Circuit Breakers, S200UP Series

MFG #:

S201UP-K5

Circuit Breaker, 1-P, 5A/277V, K, 480Y/277VAC, UL489 Listed, 10KAIC, DIN Mount

View Full Specs

Discontinued by Manufacturer

Request Lead Time

Compare

View Alternative Products

Specifications

Specifications

Specifications
Manufacturer Part Number	S201UP-K5
Manufacturer	ABB
Product Series	S200UP
Family Series	ABB Circuit Breakers, S200UP Series
Poles	1
Current Rating	5 A
Max Voltage	480 VAC, 125 VDC
Trip Curve	K
Trip Unit	Fixed Thermal / Fixed Magnetic
Mounting	DIN Rail
Neutral Pole	No
Terminal Type	Screw
Auxiliary Switch	Optional
Shunt Trip	Optional
Undervoltage Release	No
Alarm Switch	Optional
UL Standard	489
Approvals	CSA, UL
H x W x D	3.20 " x 4.20 " x 7.20 "
Net Weight	0.309 lbs
Gross Weight	2.95 lbs

Recommended Replacement Products

Recommended Replacement Products

The original part is discontinued by the manufacturer. Our team has identified the following equivalent replacement.

Recommended Replacement Products comparison
Image	Part	Description	Mounting	Series	Poles	Price	Action
	SU201M-K5	SU201M-K5 Miniature Circuit Breaker K-Char., 10kA, 5A, 1P UL489	DIN Rail	SU200M	1	Price unavailable
