Specifications

Specifications
Manufacturer Part Number	101051.00
Manufacturer	Leeson
Product Series	Special Voltage
Family Series	Leeson Motors, Special Voltage Series
Type	General Purpose
Horsepower	1/2 hp
Speed	1,800 RPM
RPM	1,800 RPM
Number of Poles	4
Phase	3
NEMA Frame	S56
Nominal Voltage	575 VAC
Enclosure	Totally Enclosed Fan Cooled
Mounting	Foot Mount, Rigid
Current Rating	0.8 A
Service Factor	1.15
Composition	Steel
Bearing Type	Ball
Length	9.94 "
Approvals	CSA, UL
Net Weight	0 lbs
Gross Weight	0 lbs

Description

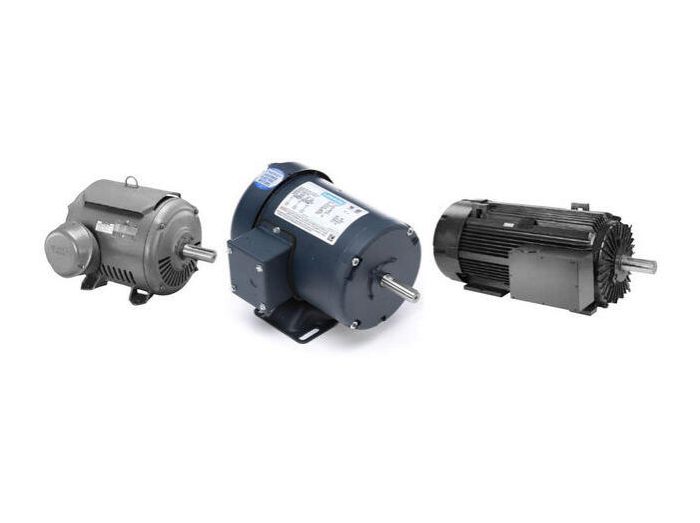

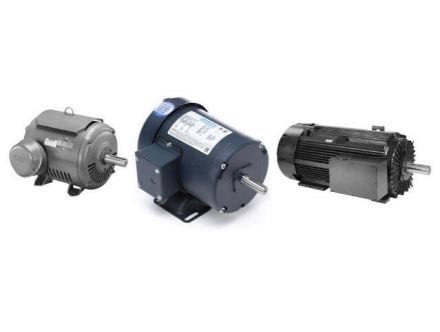

Motors, Special Voltage Series

Item #

101051.00

Motor, 0.5HP, 575V, 1725RPM TEFC

Special Voltage Series Information

Standard, EPACT and Premium efficient ratings
Inverter rated
Class B insulation systems ‑ 42, 48 and 56 frames
Class F insulation system ‑ 140 frame and higher
Shielded ball bearings for direct coupled applications.

Applications: For use where special voltages are required. Ideally suited for use on pumps, compressors, fans, blowers, conveyors, machine tools and other industrial applications

Rolled steel, aluminum, and cast iron frame material designs
Continuous duty
Dynamically balanced rotors
Torques exceed NEMA performance standards
UL recognized and CSA certified

Documents & Resources

Documents & Resources Links

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Part	Description	Voltage	Mounting	Series	Price
CM3534-5	.33HP, 1725RPM, 3PH, 60HZ, 56C, 3413M	575 VAC, 600 VAC	C-Face Footed	M	Price unavailable
CM3538-5	.5HP, 1725RPM, 3PH, 60HZ, 56C, 3416M	575 VAC, 600 VAC	C-Face Footed	M	Price unavailable
M3538-5	.5HP, 1725RPM, 3PH, 60HZ, 56, 3416M	575 VAC, 600 VAC	Foot Mount		Price unavailable
