Leeson Motors, General Purpose Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

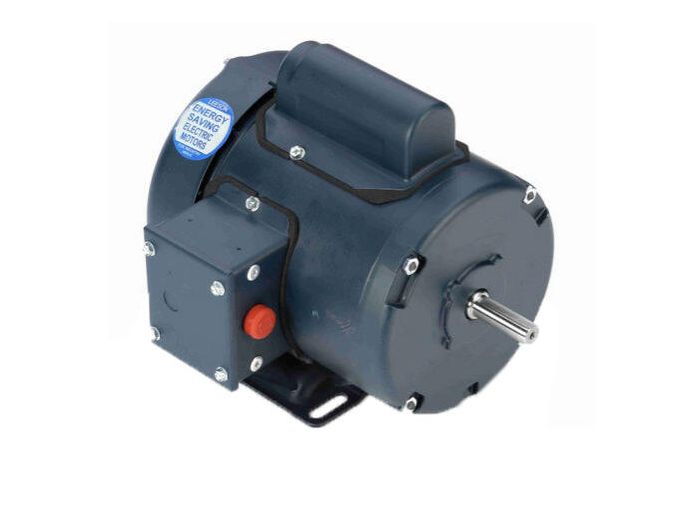

101446.00 Leeson Motors, General Purpose Series
Motor, 0.25HP, 115/208-230V,
MFG Item Number
101446.00
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Motors, General Purpose Series
Item #
101446.00
Motor, 0.25HP, 115/208-230V,
General Purpose Series Information
- NEMA Design B performance
- Meets or exceed NEMA service factors
- Double shielded bearings
- Continuous duty
- Thermally protected ratings
- UL recognized component listing and CSA certified
Specifications
| Manufacturer Part Number | 101446.00 |
|---|---|
| Manufacturer | Leeson |
| Product Series | General Purpose |
| Family Series | Leeson Motors, General Purpose Series |
| Description | Motor, 0.25HP, 115/208-230V, 1725RPM TEFC General Purpose |
| Type | General Purpose |
| Horsepower | 1/4 hp |
| Speed | 1,800 RPM |
| RPM | 1,800 RPM |
| Number of Poles | 4 |
| Phase | 1 |
| NEMA Frame | 48 |
| Nominal Voltage | 208 VAC, 240 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Foot Mount, Rigid |
| Current Rating | 2.7 A |
| Service Factor | 1.15 |
| Motor Type | Capacitor Start |
| Composition | Steel |
| Bearing Type | Ball |
| Overload Protection | Manual |
| Length | 9.06 " |
| Approvals | CSA, UL |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
