10250T112-51 Eaton Switches, 10250T Series
EXTD PB R 1NC
MFG Item Number
10250T112-51
Eaton

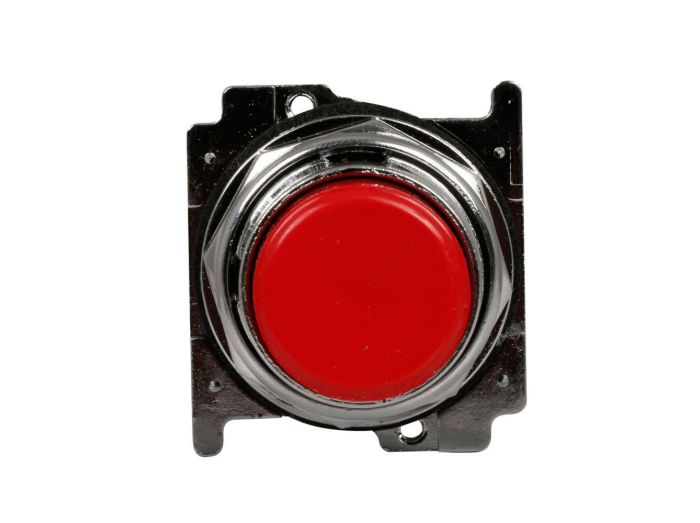

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

10250T112-51 Eaton Switches, 10250T Series

EXTD PB R 1NC
MFG Item Number
10250T112-51
Eaton
Series
10250T
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Switches, 10250T Series
Item #
10250T112-51
EXTD PB R 1NC

10250T Series Information

  • 30.5 mm Mounting Size
  • Incandescent or LED Types
  • Standard Screw Terminals
Eaton's 10250T Series features a zinc die cast construction with chromeplated housing and mounting nut. These devices incorporate a presstotest feature whereby depressing the lens disconnects the light from the source being monitored and connects the lamp to a continuously energized circuit for immediate test for a faulty lamp. All operators also incorporate grounding nibs to enhance the ground connection when the device is securely tightened.
  • Heavy‑Duty Oiltight Design
  • NEMA 1,2,3,3R,4,4X,12,13; IP65
  • Easy to Assemble

Links

Specifications

Specifications
Country of Origin United States
Manufacturer Part Number 10250T112-51
Manufacturer Eaton
Product Series 10250T
Family Series Eaton Switches, 10250T Series
Description Eaton 10250T pushbutton 30.5 mm Assembled pushbutton, 10250T, Heavy-Duty, NEMA 3, 3R, 4, 4X, 12, 13, Non-illuminated, Momentary, Extended, Red actuator, 1NC, Chrome bezel, Plastic actuator, Factory assembled
Illuminated No
Operation Momentary
Mounting 30 mm
Contacts 1NC
Bezel Metal Round
Lens/Button Shape Round Extended
Operator Color Red
Terminal Type Screw
Material Plastic
NEMA Rating NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Approvals CE, CSA, UL
H x W x D 1.38 " x 1.38 " x 2.53 "
Net Weight 0.2 lbs
Gross Weight 0.2 lbs
