10250T123-2
Eaton Switches, 10250T Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

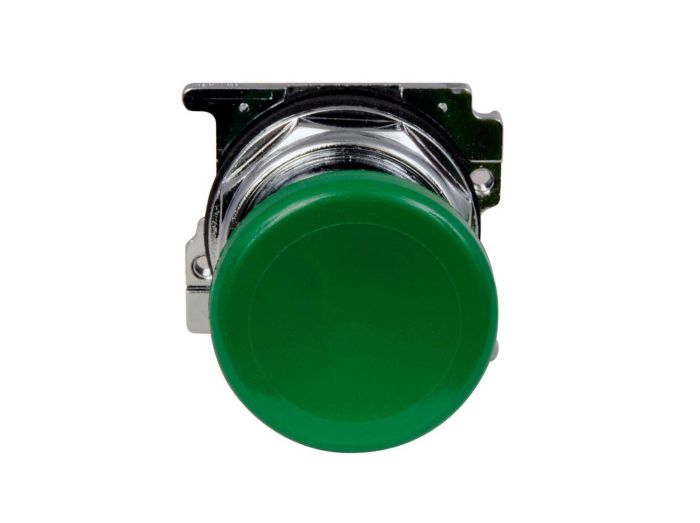

10250T123-2 Eaton Switches, 10250T Series
MSHD PB G 2NO
MFG Item Number
10250T123-2
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Switches, 10250T Series
Item #
10250T123-2
MSHD PB G 2NO
10250T Series Information
- 30.5mm Mounting Size
- Flush, Extended, or Mushroom
- Standard Screw Terminals
- NEMA 1,2,3,3R,4,4X,12,13; IP65
- UL; CSA; IEC; CE Approvals
- Easy to Assemble
- Heavy‑Duty Oiltight Design
Specifications
| Country of Origin | Dominican Republic |
|---|---|
| Manufacturer Part Number | 10250T123-2 |
| Manufacturer | Eaton |
| Product Series | 10250T |
| Family Series | Eaton Switches, 10250T Series |
| Description | Eaton 10250T pushbutton, 30.5 mm Heavy-Duty Watertight/Oiltight Pushbutton Operator, Non-illuminated, 2NO contacts, Green Mushroom , Momentary, NEMA 3, 3R, 4, 4X, 12, 13, 10250T series |
| Illuminated | No |
| Operation | Momentary |
| Mounting | 30 mm |
| Operator Size (mm) | 40 mm |
| Contacts | 2NO |
| Max Voltage | 660 VAC, 660 VDC |
| Current Rating | 10 A |
| Bezel | Metal Round |
| Lens/Button Shape | Mushroom |
| Operator Color | Green |
| Terminal Type | Screw |
| Protection Rating | IP65 |
| NEMA Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Approvals | CE, CSA, UL |
| Comments | Screw |
| H x W x D | 1.60 " x 1.80 " x 2.80 " |
| Net Weight | 0.295 lbs |
| Gross Weight | 0.33 lbs |
