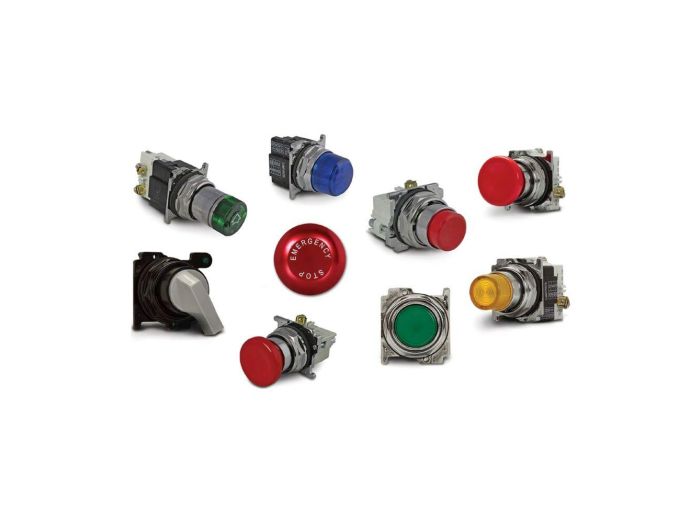

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
10250T597LRD24-71X Eaton Switches, 10250T Series
MFG #:
10250T597LRD24-71X
Eaton 30.5 mm Heavy-Duty Push-Pull,Assembled,Standard 40 mm Actuator Lens,Red,Plastic Bus,1LONC,Bayonet base,Illuminated,24 Vac/Vdc Lamp,LED, full voltage,24 Vac/Vdc Light Unit,Two-position,Maintained push and pull,10250T Series
Specifications
| Country of Origin | United States |
|---|---|
| Manufacturer Part Number | 10250T597LRD24-71X |
| Manufacturer | Eaton |
| Product Series | 10250T |
| Family Series | Eaton Switches, 10250T Series |
| Illuminated | Yes |
| Operation | Push-Pull |
| Mounting | 30 mm |
| Operator Size (mm) | 40 mm |
| Contacts | 1NC |
| Max Voltage | 24 VAC |
| Bezel | Metal Round |
| Lamp Type | LED |
| Nominal Lamp Voltage | 24 VAC, 24 VDC |
| Lens/Button Shape | Mushroom |
| Operator Color | Red |
| Terminal Type | Screw |
| NEMA Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Approvals | CE, CSA, UL |
| Comments | 1 Late Opening NC Contact |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
Description
Switches, 10250T Series
Item #
10250T597LRD24-71X
2-POS ILL PUSH-PULL 40MM 24V FV - 1 LONC
10250T Series Information
- 30.5 mm Mounting Size
- Incandescent or LED Types
- Standard Screw Terminals
- Heavy‑Duty Oiltight Design
- NEMA 1,2,3,3R,4,4X,12,13; IP65
- Easy to Assemble
