Specifications

Specifications
Manufacturer Part Number	110395.00
Manufacturer	Leeson
Product Series	Special Voltage
Family Series	Leeson Motors, Special Voltage Series
Type	General Purpose
Horsepower	1/2 hp
Speed	1,500 RPM
RPM	1,500 RPM
Number of Poles	4
Phase	1
NEMA Frame	56
Nominal Voltage	120 VAC, 240 VAC
Enclosure	Drip Proof
Mounting	Foot Mount, Rigid
Current Rating	4.1 A
Service Factor	1.25
Composition	Steel
Bearing Type	Ball
Length	10.38 "
Approvals	CSA, UL
Net Weight	28 lbs
Gross Weight	28 lbs

Description

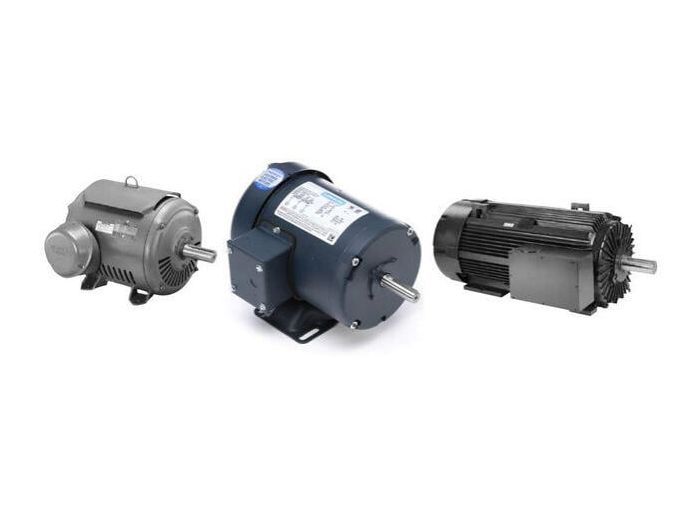

Motors, Special Voltage Series

Item #

110395.00

Motor, 0.5HP, /V, 1425RPM IP22

Special Voltage Series Information

Standard, EPACT and Premium efficient ratings
Inverter rated
Class B insulation systems ‑ 42, 48 and 56 frames
Class F insulation system ‑ 140 frame and higher
Shielded ball bearings for direct coupled applications.

Applications: For use where special voltages are required. Ideally suited for use on pumps, compressors, fans, blowers, conveyors, machine tools and other industrial applications

Rolled steel, aluminum, and cast iron frame material designs
Continuous duty
Dynamically balanced rotors
Torques exceed NEMA performance standards
UL recognized and CSA certified

Documents & Resources

Documents & Resources Links

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Image	Part	Description	Voltage	Mounting	Series	Price	Action
	L1209-50	.5 /KW .37, 1440RPM, 1PH, 50HZ, 48	120 VAC, 208 VAC, 240 VAC	Foot Mount, Rigid	L	Price unavailable
	L1304-50	.5/.37KW, 1440RPM, 1PH, 50HZ, 56, 3424LC	120 VAC, 208 VAC, 240 VAC	Foot Mount, Rigid	L	Price unavailable

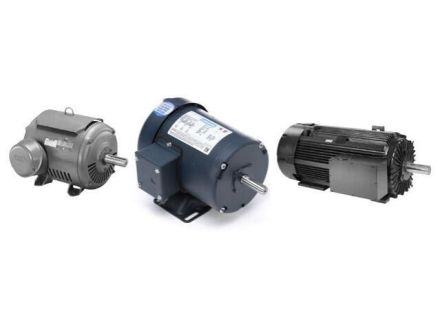

110395.00 Leeson Motors, Special Voltage Series
