Leeson Motors, Special Voltage Series

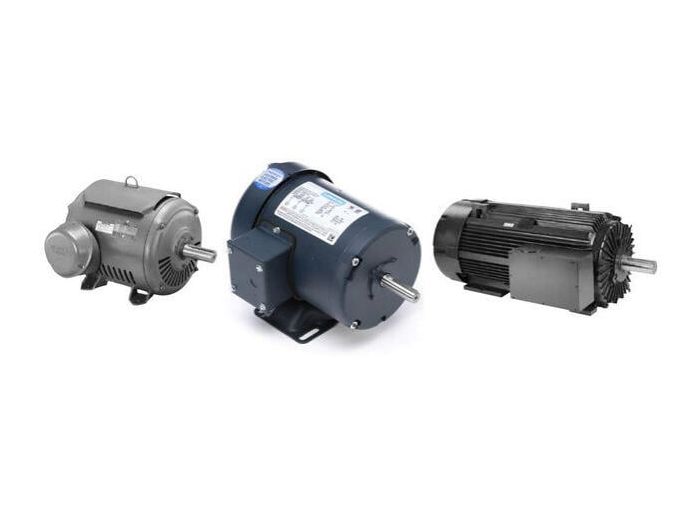

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
110424.00 Leeson Motors, Special Voltage Series
Motor, 1.5HP, /V, 1425RPM IP54
MFG Item Number
110424.00
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Motors, Special Voltage Series
Item #
110424.00
Motor, 1.5HP, /V, 1425RPM IP54
Special Voltage Series Information
- Standard, EPACT and Premium efficient ratings
- Inverter rated
- Class B insulation systems ‑ 42, 48 and 56 frames
- Class F insulation system ‑ 140 frame and higher
- Shielded ball bearings for direct coupled applications.
Applications: For use where special voltages are required. Ideally suited for use on pumps, compressors, fans, blowers, conveyors, machine tools and other industrial applications
- Rolled steel, aluminum, and cast iron frame material designs
- Continuous duty
- Dynamically balanced rotors
- Torques exceed NEMA performance standards
- UL recognized and CSA certified
Specifications
| Manufacturer Part Number | 110424.00 |
|---|---|
| Manufacturer | Leeson |
| Product Series | Special Voltage |
| Family Series | Leeson Motors, Special Voltage Series |
| Description | Motor, 1.5HP, /V, 1425RPM IP54 General Purpose - 50Hz |
| Type | General Purpose |
| Horsepower | 1-1/2 hp |
| Speed | 1,500 RPM |
| RPM | 1,500 RPM |
| Number of Poles | 4 |
| Phase | 1 |
| NEMA Frame | 56H |
| Nominal Voltage | 120 VAC, 240 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | Foot Mount, Rigid |
| Current Rating | 8.6 A |
| Service Factor | 1 |
| Composition | Steel |
| Bearing Type | Ball |
| Length | 13.31 " |
| Approvals | CSA, UL |
| Net Weight | 50 lbs |
| Gross Weight | 50 lbs |
