Specifications
| Manufacturer Part Number | 110914.00 |
|---|---|
| Manufacturer | Leeson |
| Product Series | Three Phase C Face |
| Family Series | Leeson Motors, Three Phase C Face Series |
| Type | General Purpose |
| Horsepower | 1/2 hp |
| Speed | 1,200 RPM |
| RPM | 1,200 RPM |
| Number of Poles | 6 |
| Phase | 3 |
| NEMA Frame | 56C |
| Nominal Voltage | 208 VAC, 240 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | C-Face Footed |
| Current Rating | 2.4 A |
| Service Factor | 1.15 |
| Composition | Steel |
| Bearing Type | Ball |
| Length | 11.31 " |
| Approvals | CSA, UL |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
Description
Motors, Three Phase C Face Series
Item #
110914.00

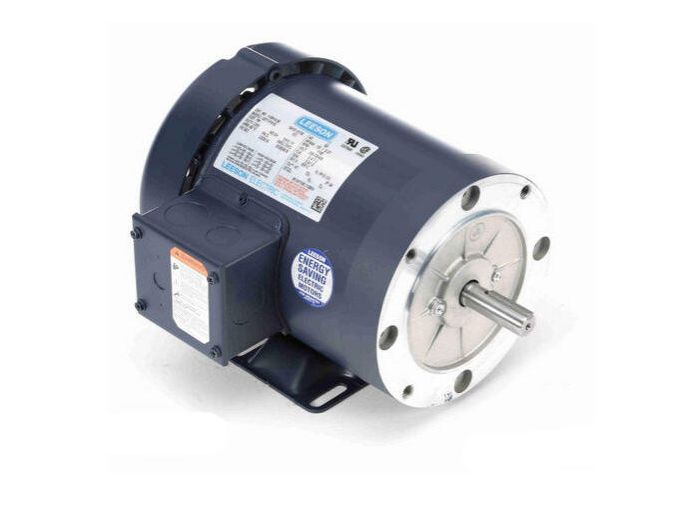

Motor, 0.5HP, 208-230/460V, 1140RPM
Three Phase C Face Series Information
- Standard, EPACT and Premium efficient ratings
- Inverter‑rated
- Class B insulation systems ‑ 42, 48 and 56 frames
- Class F insulation system ‑ 140 frame and higher
- Shielded ball bearings for direct coupled applications
Applications: Same applications as used on our general purpose ODP and enclosed, three phase motors, only having NEMA C Face mount, which allows direct mounting to a pump or gear reducer or other direct coupled equipment.
- Continuous duty
- Dynamically balanced rotors
- Torques exceed NEMA performance standards
- 1‑year warranty on Standard efficient motors
- 2‑year warranty on EPACT efficient motors
- 3‑year warranty on Premium efficient motors
- UL recognized and CSA certified
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Voltage | Mounting | Series | Price | Action |
|---|---|---|---|---|---|---|---|
|
CM3539 | .5HP, 1140RPM, 3PH, 60HZ, 56C, 3418M | 208 VAC, 240 VAC, 415 VAC, 480 VAC | C-Face Footed | M |
Price unavailable
|
|
|
G588 | Motor RIGID 4-IN-1 | 208 VAC, 240 VAC, 415 VAC, 480 VAC | C-Face Footless, C-Face Footed | NH-H-H1 |
Price unavailable
|
Added to Cart

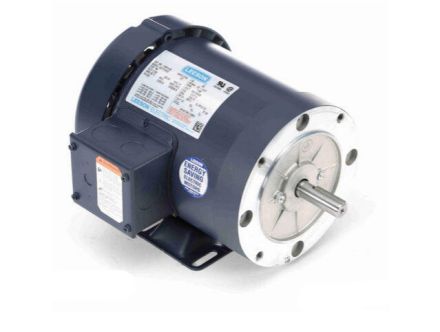

110914.00 Leeson Motors, Three Phase C Face Series, Motor, 0.5HP, 208-230/460V, 1140RPM
