11100RQD07
Eaton Photoelectric Sensors, COMET Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

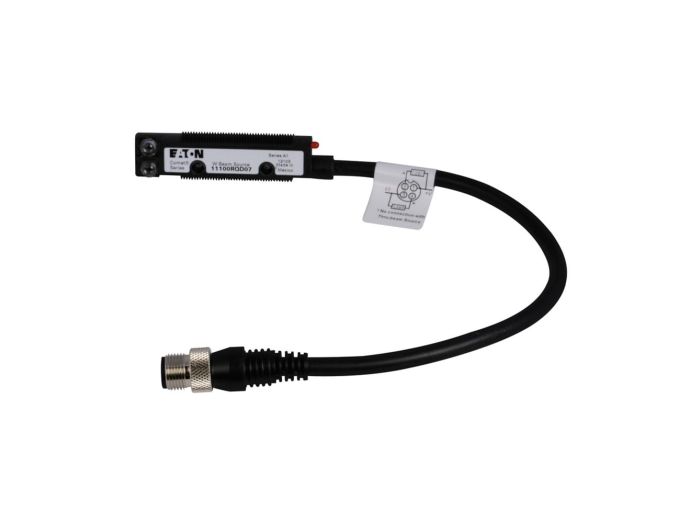

11100RQD07 Eaton Photoelectric Sensors, COMET Series
18MM TB SOURCE RA,10-30VDC,MICRO CONN
MFG Item Number
11100RQD07
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Accessories
Description
Photoelectric Sensors, COMET Series
Item #
11100RQD07
18MM TB SOURCE RA,10-30VDC,MICRO CONN
COMET Series Information
- .1 in ~ 80 ft. Sensing Range
- 20~264 VAC or 10~50 VDC
- 2, 3, or 4 Wire
- NPN, PNP, or VMOS Output
- UL;C‑UL Listed, CE Approved
The Comet photoelectric sensor series from Cutler‑Hammer boasts over 250 different models to suit a wide variety of sensing applications. All models feature selectable Light/Dark operation, and have 18mm threaded bodies with flat sides for easy, flexible mounting.
- Solid Polyurethane Housing Provides Shock and Vibration Resistance
- Visible Beam Models for Easy Sensor Alignment
- 4‑Wire DC Models Featuring Both NPN and PNP Outputs
- Adaptable Modulation Circuit Prevents Crosstalk From Other Nearby Sensors
Specifications
| Manufacturer Part Number | 11100RQD07 |
|---|---|
| Manufacturer | Eaton |
| Product Series | COMET |
| Family Series | Eaton Photoelectric Sensors, COMET Series |
| Description | Eaton Comet 18mm tubular photoelectric sensor, Through Beam, Right Angle, Power, M12, 4 pin, 10-30 Vdc |
| Power Type | DC |
| Max Range | 10 ' |
| Voltage | 10-30 VDC |
| Nominal Voltage | 12 VDC, 24 VDC |
| Operating Mode | Dark On, Light On |
| Connection Type | 4 Pin Micro |
| Max Load Current | 0.25 A |
| Matching Source Unit | 12100RQD07 |
| Composition | Non-Metallic |
| Protection Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13 |
| Approvals | CE, CUL, UL |
| Comments | Thru-Beam Source |
| H x W x D | 2.15 " x 5.05 " x 6.25 " |
| Net Weight | 0.215 lbs |
| Gross Weight | 0.215 lbs |
