11101.9-00

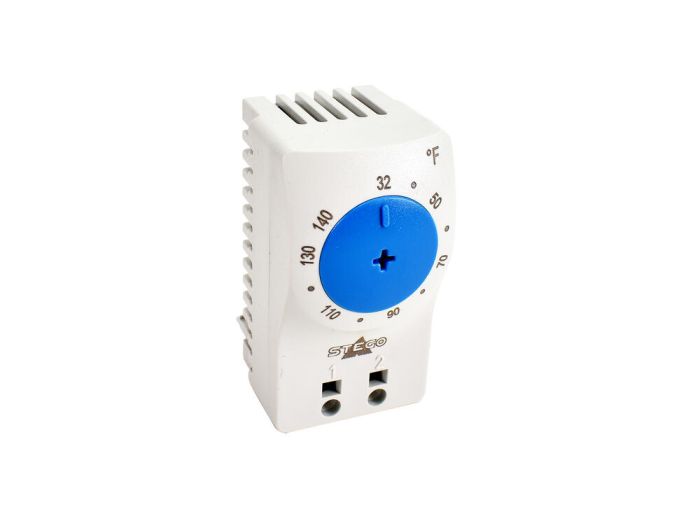

Stego Thermostats, KTO 111 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
11101.9-00 Stego Thermostats, KTO 111 Series
KTS 111 Thermostat, normally open, 32-14
MFG Item Number
11101.9-00
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Thermostats, KTO 111 Series
Item #
11101.9-00
KTS 111 Thermostat, normally open, 32-14
KTO 111 Series Information
- Safe wiring with Push‑In terminals
- Faster and tool‑free wiring
- Improved air intakes for ventilation
- Easy adjustability of switch temperature setting
- for use in up to 5,000 m altitude
The mechanical thermostats KTO 111 and KTS 111 are two state regulators for use up to 5,000 meters in altitude, thanks to optimized air gap and increased creepage distance. By use of Push‑In terminals the thermostat is wired tool‑free. The Push‑In terminals provide constant pressure on the wires to prevent them from coming loose (e.g. during transport).
Specifications
| Country of Origin | Germany |
|---|---|
| Manufacturer Part Number | 11101.9-00 |
| Manufacturer | Stego |
| Product Series | KTO 111 |
| Family Series | Stego Thermostats, KTO 111 Series |
| Description | KTS 111 Thermostat, normally open, 32-140°F, 120V(15A), 250V(10A) |
| Type | Mechanical |
| Voltage | 120 VAC, 24-72 VDC, 250 VAC |
| Nominal Voltage | 120 VAC, 24 VDC, 240 VAC, 48 VDC, 72 VDC |
| Contact Arrangement | NO |
| Sensor Element | Thermostatic Bimetal |
| Setting Range | 32-140 °F |
| Mounting | DIN Rail |
| Connection | Push-In Clamps |
| Contact Type | Snap-Action |
| Enclosure | Plastic |
| Operating Temperature | -49-176 °F |
| Engineering Units | Fahrenheit |
| Protection Rating | IP20 |
| Application | Cooling |
| Approvals | CE, cURus, EAC, VDE |
| H x W x D | 1.55 " x 1.25 " x 2.45 " |
| Net Weight | 0.09 lbs |
| Gross Weight | 0.12 lbs |
