Eaton
Series
PRISM
11155RA17 Eaton Photoelectric Sensors, PRISM Series
MFG #:
11155RA17
Eaton OEM Prism 18mm tubular photoelectric sensor, Photoelectric, 0.71 diameter, Right Angle, Sensor distance: 20 Ft., Lens: polycarbonate cable jacket: PVC body: structural polyurethane foam enclosure, 10-30 Vdc input
View Full Specs

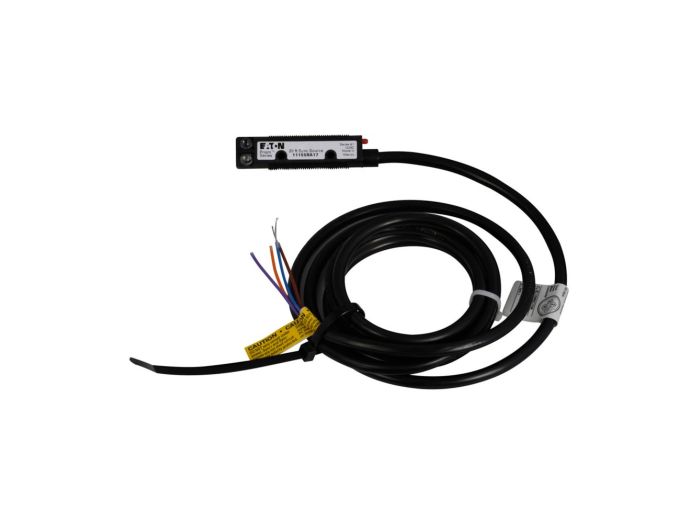

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Eaton
Series
PRISM

11155RA17 Eaton Photoelectric Sensors, PRISM Series

MFG #:
11155RA17
Eaton OEM Prism 18mm tubular photoelectric sensor, Photoelectric, 0.71 diameter, Right Angle, Sensor distance: 20 Ft., Lens: polycarbonate cable jacket: PVC body: structural polyurethane foam enclosure, 10-30 Vdc input
View Full Specs

Request Lead Time
This item cannot be canceled or returned

Specifications

Specifications
Country of Origin Mexico
Manufacturer Part Number 11155RA17
Manufacturer Eaton
Product Series PRISM
Family Series Eaton Photoelectric Sensors, PRISM Series
Power Type DC
Max Range 10 '
Voltage 10-30 VDC
Nominal Voltage 12 VDC, 24 VDC
Number of Outputs 1
Operating Mode Light On, Dark On
Connection Type Cable
Max Load Current 0.11 A
Matching Source Unit 12155RL10, 12155RD10
Composition Non-Metallic
Protection Rating NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13
Approvals CE, CUL, UL
Comments Thru-Beam Source
H x W x D 2.00 " x 5.25 " x 6.25 "
Net Weight 0.7 lbs
Gross Weight 0.7 lbs
