Specifications
| Manufacturer Part Number | 113904.00 |
|---|---|
| Manufacturer | Leeson |
| Product Series | Special Voltage |
| Family Series | Leeson Motors, Special Voltage Series |
| Type | General Purpose |
| Horsepower | 1-1/2 hp |
| Speed | 3,000 RPM |
| RPM | 3,000 RPM |
| Number of Poles | 2 |
| Phase | 1 |
| NEMA Frame | 56H |
| Nominal Voltage | 120 VAC, 240 VAC |
| Enclosure | Drip Proof |
| Mounting | Foot Mount, Rigid |
| Current Rating | 8.6 A |
| Service Factor | 1.15 |
| Composition | Steel |
| Bearing Type | Ball |
| Length | 11.84 " |
| Approvals | CSA, UL |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
Description

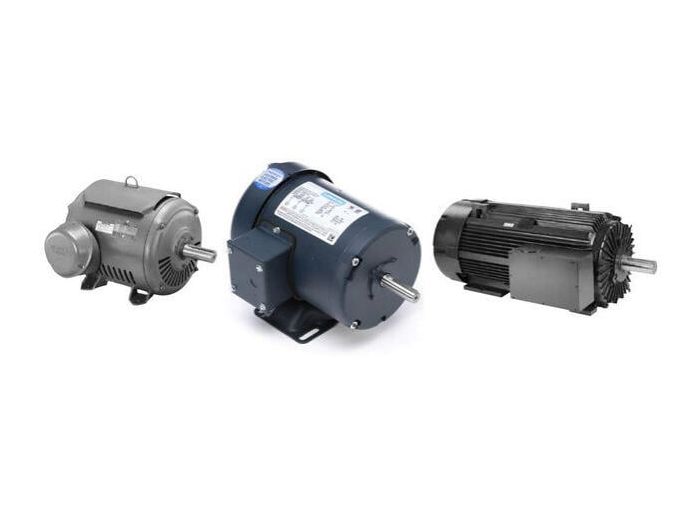

Motors, Special Voltage Series
Item #
113904.00
Motor, 1.5HP, 110/220V, 2850RPM
Special Voltage Series Information
- Standard, EPACT and Premium efficient ratings
- Inverter rated
- Class B insulation systems ‑ 42, 48 and 56 frames
- Class F insulation system ‑ 140 frame and higher
- Shielded ball bearings for direct coupled applications.
Applications: For use where special voltages are required. Ideally suited for use on pumps, compressors, fans, blowers, conveyors, machine tools and other industrial applications
- Rolled steel, aluminum, and cast iron frame material designs
- Continuous duty
- Dynamically balanced rotors
- Torques exceed NEMA performance standards
- UL recognized and CSA certified
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Voltage | Mounting | Series | Price | Action |
|---|---|---|---|---|---|---|---|
|
L1313-50 | 1.5/1.1KW, 2920RPM, 1PH, 50HZ, 56 | 120 VAC, 208 VAC, 240 VAC | Foot Mount, Rigid | L |
Price unavailable
|
Added to Cart

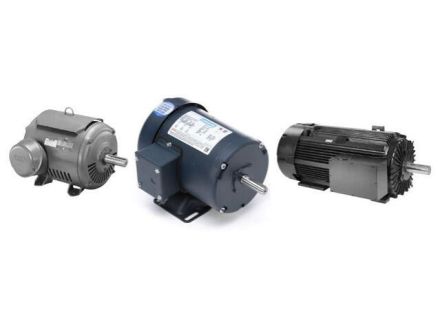

113904.00 Leeson Motors, Special Voltage Series, Motor, 1.5HP, 110/220V, 2850RPM
