Specifications

Specifications

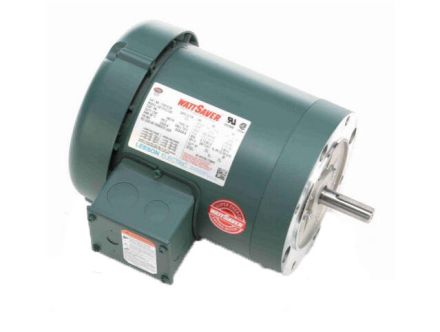

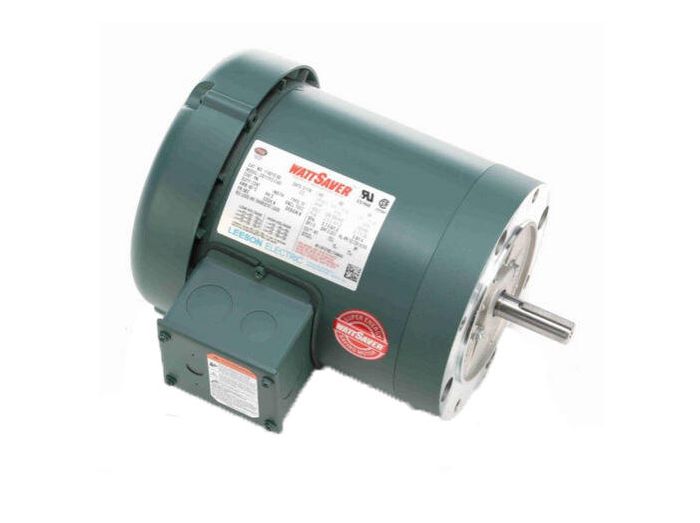

Manufacturer Part Number	114213.00
Manufacturer	Leeson
Product Series	Three Phase C Face
Family Series	Leeson Motors, Three Phase C Face Series
Type	General Purpose
Horsepower	3/4 hp
Speed	1,800 RPM
RPM	1,800 RPM
Number of Poles	4
Phase	3
NEMA Frame	56C
Nominal Voltage	208 VAC, 240 VAC, 480 VAC
Enclosure	Totally Enclosed Fan Cooled
Mounting	C-Face Less Base
Current Rating	2.7 A
Service Factor	1.15
Composition	Steel
Bearing Type	Ball
Length	11.31 "
Approvals	CSA, UL
H x W x D	12.00 " x 11.00 " x 15.00 "
Net Weight	29 lbs
Gross Weight	29 lbs

Description

Motors, Three Phase C Face Series

Item #

114213.00

Motor, 0.75HP, 208-230/460V,

Three Phase C Face Series Information

Standard, EPACT and Premium efficient ratings
Inverter‑rated
Class B insulation systems ‑ 42, 48 and 56 frames
Class F insulation system ‑ 140 frame and higher
Shielded ball bearings for direct coupled applications

Applications: Same applications as used on our general purpose ODP and enclosed, three phase motors, only having NEMA C Face mount, which allows direct mounting to a pump or gear reducer or other direct coupled equipment.

Continuous duty
Dynamically balanced rotors
Torques exceed NEMA performance standards
1‑year warranty on Standard efficient motors
2‑year warranty on EPACT efficient motors
3‑year warranty on Premium efficient motors
UL recognized and CSA certified

Documents & Resources

Documents & Resources Links

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Image	Part	Description	Voltage	Mounting	Series	Price	Action
	VEM3542	.75HP, 1765RPM, 3PH, 60HZ, 56C, 3514M	208 VAC, 240 VAC, 415 VAC, 480 VAC	C-Face Footless	VM	Price unavailable
