Specifications
| Manufacturer Part Number | 114315.00 |
|---|---|
| Manufacturer | Leeson |
| Product Series | Washguard |
| Family Series | Leeson Motors, Washguard Series |
| Type | Washdown |
| Horsepower | 3/4 hp |
| Speed | 1,800 RPM |
| RPM | 1,800 RPM |
| Number of Poles | 4 |
| Phase | 1 |
| NEMA Frame | 56C |
| Nominal Voltage | 120 VAC, 208 VAC, 240 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | C-Face Footed |
| Current Rating | 5.4 A |
| Service Factor | 1.15 |
| Composition | Steel |
| Overload Protection | None |
| Length | 11.69 " |
| Approvals | CSA, UL |
| Net Weight | 34 lbs |
| Gross Weight | 34 lbs |
Description

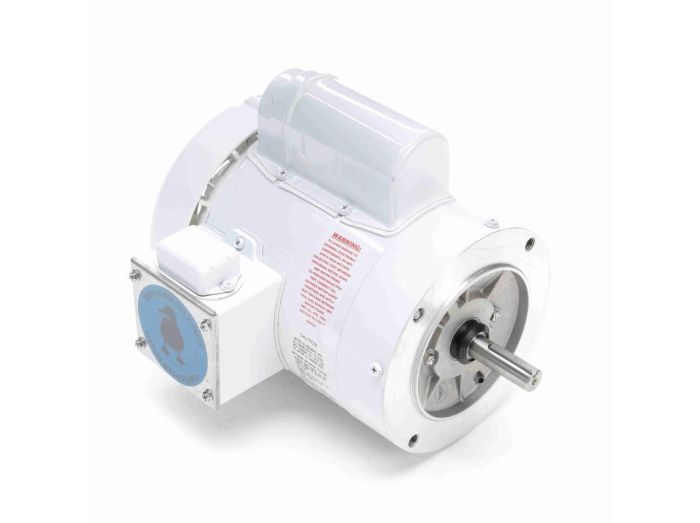

Motors, Washguard Series
Item #
114315.00
Motor, 0.75HP, /V, 1725RPM TEFC
Washguard Series Information
- USDA‑approved epoxy painted motors
- Stainless steel motors
- Encapsulated stainless steel motors available
- NEMA and IEC flange motors
- Three phase, single phase and DC washdown duty motors
Applications: Designed to meet the demanding washdown conditions that you may find in food processing plants, chemical processing, pharmaceutical plants and the beverage and brewing industries.
- AC and DC washdown gearmotors
- Rigid base and C face mount types
- BISSC approved designs
- Forsheda shaft seals and Protech bearing isolators used to seal motor shafts
- 3‑year warranty on encapsulated and Premium efficient models
- Washdown brakemotors and pump motors available
- UL recognized and CSA certified
