Leeson Motors, Three Phase C Face Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

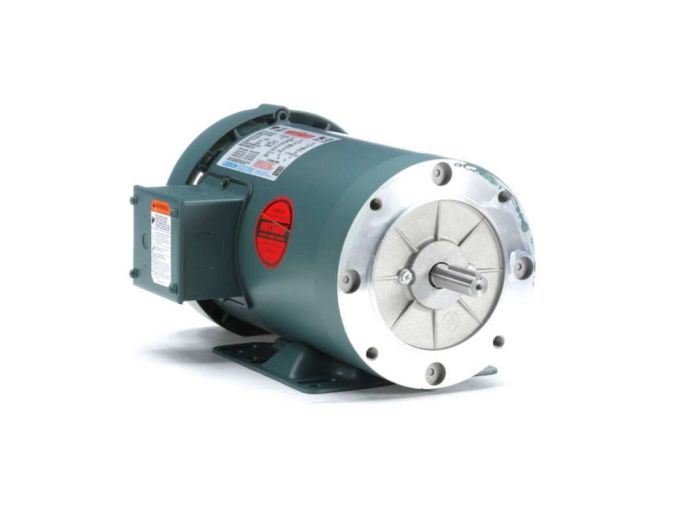

116747.00 Leeson Motors, Three Phase C Face Series
Motor, 2HP, 208-230/460V, 1745RPM
MFG Item Number
116747.00
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Motors, Three Phase C Face Series
Item #
116747.00
Motor, 2HP, 208-230/460V, 1745RPM
Three Phase C Face Series Information
- Standard, EPACT and Premium efficient ratings
- Inverter‑rated
- Class B insulation systems ‑ 42, 48 and 56 frames
- Class F insulation system ‑ 140 frame and higher
- Shielded ball bearings for direct coupled applications
Applications: Same applications as used on our general purpose ODP and enclosed, three phase motors, only having NEMA C Face mount, which allows direct mounting to a pump or gear reducer or other direct coupled equipment.
- Continuous duty
- Dynamically balanced rotors
- Torques exceed NEMA performance standards
- 1‑year warranty on Standard efficient motors
- 2‑year warranty on EPACT efficient motors
- 3‑year warranty on Premium efficient motors
- UL recognized and CSA certified
Specifications
| Manufacturer Part Number | 116747.00 |
|---|---|
| Manufacturer | Leeson |
| Product Series | Three Phase C Face |
| Family Series | Leeson Motors, Three Phase C Face Series |
| Description | Motor, 2HP, 208-230/460V, 1745RPM TEFC Wattsaver |
| Type | General Purpose |
| Horsepower | 2 hp |
| Speed | 1,800 RPM |
| RPM | 1,800 RPM |
| Number of Poles | 4 |
| Phase | 3 |
| NEMA Frame | 56HC |
| Nominal Voltage | 208 VAC, 240 VAC, 480 VAC |
| Enclosure | Totally Enclosed Fan Cooled |
| Mounting | C-Face Footed |
| Current Rating | 5.8 A |
| Service Factor | 1.25 |
| Composition | Steel |
| Bearing Type | Ball |
| Length | 13.82 " |
| Approvals | CSA, UL |
| Net Weight | 48 lbs |
| Gross Weight | 48 lbs |
