Specifications
| Manufacturer Part Number | 120004.00 |
|---|---|
| Manufacturer | Leeson |
| Product Series | General Purpose |
| Family Series | Leeson Motors, General Purpose Series |
| Type | General Purpose |
| Horsepower | 1-1/2 hp |
| Speed | 1,800 RPM |
| RPM | 1,800 RPM |
| Number of Poles | 4 |
| Phase | 1 |
| NEMA Frame | 145T |
| Nominal Voltage | 208 VAC, 240 VAC |
| Enclosure | Drip Proof |
| Mounting | Foot Mount, Rigid |
| Current Rating | 8.6 A |
| Service Factor | 1.15 |
| Motor Type | Capacitor Start |
| Composition | Steel |
| Bearing Type | Ball |
| Overload Protection | Manual |
| Length | 12.28 " |
| Approvals | CSA, UL |
| Net Weight | 43 lbs |
| Gross Weight | 43 lbs |
Description

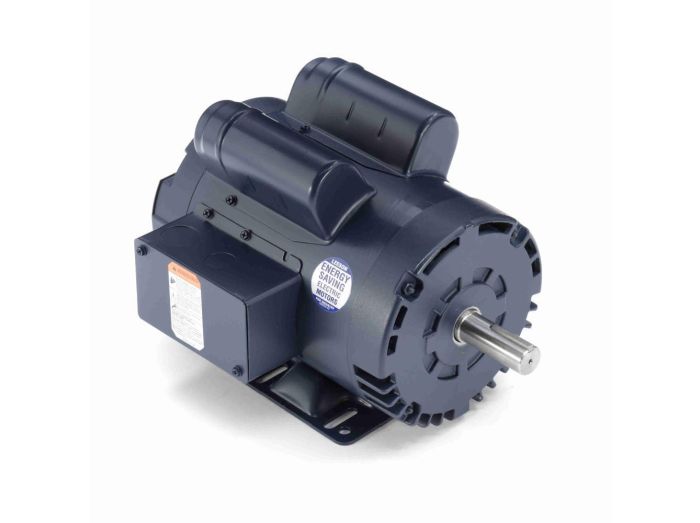

Motors, General Purpose Series
Item #
120004.00
Motor, 1.5HP, 115/208-230V, 1740RPM
General Purpose Series Information
- NEMA Design B performance
- Meets or exceed NEMA service factors
- Double shielded bearings
- Continuous duty
- Thermally protected ratings
- UL recognized component listing and CSA certified
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Voltage | Mounting | Series | Price | Action |
|---|---|---|---|---|---|---|---|
|
L1319T | 1.5HP, 1740RPM, 1PH, 60HZ, 145T, 3528L | 120 VAC, 208 VAC, 240 VAC | Foot Mount, Rigid | L |
Price unavailable
|
|
|
L1321TM | 1.5HP, 1725RPM, 1PH, 60HZ, 145T, 3535L | 120 VAC, 208 VAC, 240 VAC | Foot Mount, Rigid | L |
Price unavailable
|
