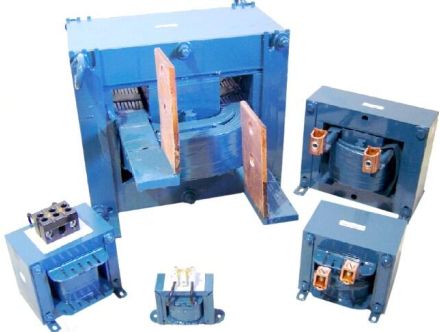

125RB001 MTE DC Link Chokes, RB Series
DC LINK CHOKES
MFG Item Number
125RB001
MTE

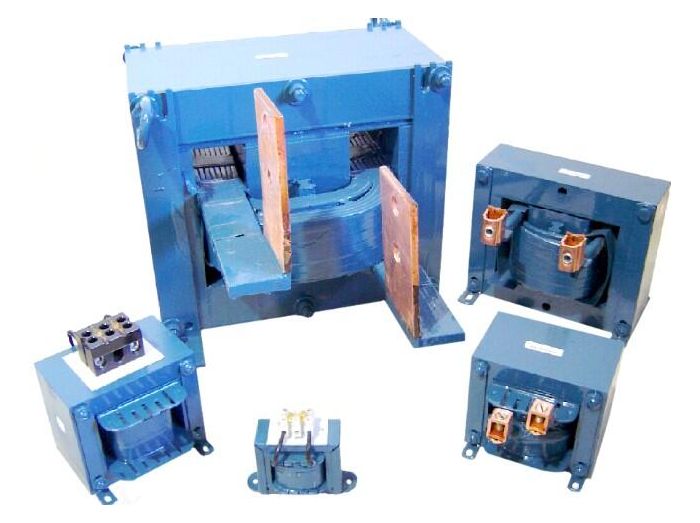

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

125RB001 MTE DC Link Chokes, RB Series

DC LINK CHOKES
MFG Item Number
125RB001
MTE
Series
RB
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

DC Link Chokes, RB Series
Item #
125RB001
DC LINK CHOKES

RB Series Information

  • 1 Amp Through 1000 Amps Standards
  • UL, cUL, and CSA Approvals
  • 1000 Volts DC Maximum Voltage
  • Reduce AC input line harmonics
  • Absorb voltage/current spikes
  • Reduce AC ripple on DC bus
  • Solve nuisance over‑voltage tripping
  • Reduce DC Bus transient over‑voltage
DC Link Chokes are an economical means of filtering the DC bus voltage in variable frequency drives (VFDs). Designed to be added to a VFD’s internal bridge and bus, they help reduce AC input line current harmonic distortion while absorbing DC bus voltage spikes. They can be used individually, typically on the positive DC bus, or in pairs with one each on both the positive and negative bus.


Links

Specifications

Specifications
Country of Origin Mexico
Manufacturer Part Number 125RB001
Manufacturer MTE
Product Series RB
Family Series MTE DC Link Chokes, RB Series
Description DC LINK CHOKES
Current Rating 125 A
Lug Size 36678
Inductance 0.11 mH
Wattage 18 W
Torque 2-0(50), 6-4(45)
Max Voltage 1,000 VDC
Approvals CSA, UL
Operating Temperature 60 °C
H x W x D 11.75 " x 14.70 " x 15.00 "
Net Weight 17.025 lbs
Gross Weight 17.03 lbs
