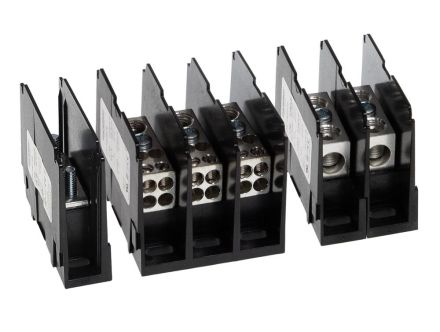

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
1322572-CH Marathon Special Products Power Distribution Blocks, 132 Series
MFG #:
1322572CH
Item Number
1322572-CH
Splicer Block, 2-P, 175A, Box/Box, Line: (1)2/0-14AWG Cu/Al Box Lug, Load: (1)2/0-14AWG, w/Protective Cvr
Specifications
| Manufacturer Part Number | 1322572CH |
|---|---|
| Manufacturer | Marathon Special Products |
| Product Series | 132 |
| Family Series | Marathon Special Products Power Distribution Blocks, 132 Series |
| Number of Poles | 2 |
| AC Voltage | 600 VAC |
| Current Rating | 175 A |
| Number of Inputs per Pole | 1 |
| Number of Outputs per Pole | 1 |
| Electrical Connection | Box Lug/Box Lug |
| Mounting | DIN Rail/Panel Mount |
| Line Side Wire Range | 2/0-14 AWG |
| Output Wire Range | 2/0-14 AWG |
| Cover Included | Yes |
| Composition | Thermoplastic |
| Color | Black |
| Approvals | CE, CSA, UL |
| H x W x D | 2.50 " x 1.80 " x 3.00 " |
| Net Weight | 0.33 lbs |
| Gross Weight | 0.33 lbs |
Description
Power Distribution Blocks, 132 Series
Item #
1322572-CH
Splicer Block, 2-P, 175A, Box/Box,
132 Series Information
- 115 to 1680 Amps
- 600 Volts AC/DC
- Flexible Stranded Wire Compliant
- Snap‑On Cover Type Available
