Specifications
| Country of Origin | United States |
|---|---|
| Manufacturer Part Number | 1323587-CH |
| Manufacturer | Marathon Special Products |
| Family Series | Marathon Special Products Power Distribution Blocks |
| Number of Poles | 3 |
| AC Voltage | 600 VAC |
| Current Rating | 175 A |
| Number of Inputs per Pole | 1 |
| Number of Outputs per Pole | 8 |
| Electrical Connection | Screw/Screw |
| Mounting | DIN Rail/Panel Mount |
| Line Side Wire Range | 2/0-14 AWG |
| Output Wire Range | 4-14 AWG, 8-14 AWG |
| Cover Included | Yes |
| Composition | Thermoplastic |
| Color | Black |
| Approvals | UR |
| H x W x D | 3.25 " x 2.55 " x 3.30 " |
| Net Weight | 0.52 lbs |
| Gross Weight | 0.52 lbs |
Description
Power Distribution Blocks, Series
Item #
1323587-CH

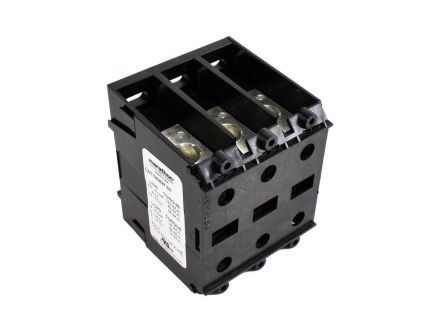

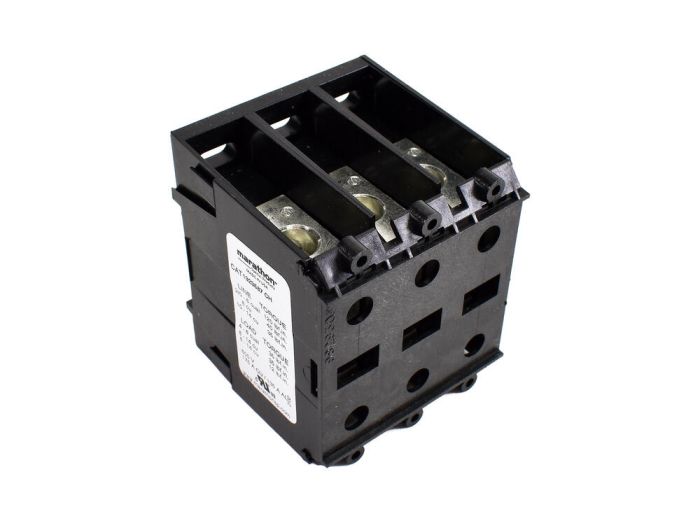

Distribution Block, 3P With Cover
Series Information
