1323972 Marathon Special Products Power Distribution Blocks, 132 Series
MFG #:
1323972

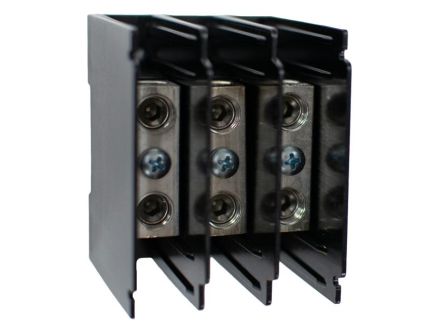

Splicer Block, 3-P, 175A, Box/Box, Line & Load: (1)2/0-14AWG, Cu Only, Copper Conductor
Specifications
| Manufacturer Part Number | 1323972 |
|---|---|
| Manufacturer | Marathon Special Products |
| Product Series | 132 |
| Family Series | Marathon Special Products Power Distribution Blocks, 132 Series |
| Number of Poles | 3 |
| AC Voltage | 600 VAC |
| Current Rating | 175 A |
| Number of Inputs per Pole | 1 |
| Number of Outputs per Pole | 1 |
| Electrical Connection | Box Lug/Box Lug |
| Mounting | DIN Rail/Panel Mount |
| Line Side Wire Range | 2/0-14 AWG |
| Output Wire Range | 2/0-14 AWG |
| Cover Included | No |
| Composition | Thermoplastic |
| Color | Black |
| Approvals | CE, CSA, UL |
| H x W x D | 3.25 " x 2.55 " x 3.30 " |
| Net Weight | 0.52 lbs |
| Gross Weight | 0.52 lbs |
Description
Power Distribution Blocks, 132 Series
Item #
1323972
Splicer Block, 3-P, 175A, Box/Box,
132 Series Information
- 115 to 1680 Amps
- 600 Volts AC/DC
- Flexible Stranded Wire Compliant
- Snap‑On Cover Type Available
