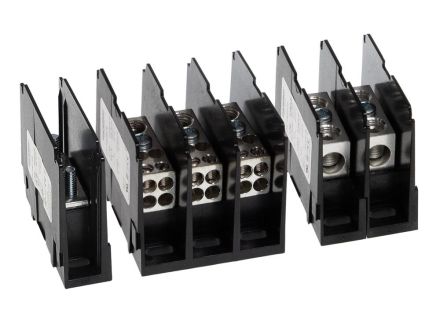

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series
1331270-CH Marathon Special Products Power Distribution Blocks, 133 Series
MFG #:
1331270CH
Item Number
1331270-CH
Distribution Block, 1-P, 510A, St/Bx Line: (1)3/8in.-16x1-3/16in. Stud, Load: (4)2/0-14AWG Box Lug, w/Cover
Specifications
| Manufacturer Part Number | 1331270CH |
|---|---|
| Manufacturer | Marathon Special Products |
| Product Series | 133 |
| Family Series | Marathon Special Products Power Distribution Blocks, 133 Series |
| Number of Poles | 1 |
| AC Voltage | 600 VAC |
| Current Rating | 510 A |
| Number of Inputs per Pole | 1 |
| Number of Outputs per Pole | 4 |
| Electrical Connection | Box Lug/Stud |
| Mounting | Panel Mount |
| Line Side Wire Range | 3/8-16 x 1-3/16 " |
| Output Wire Range | 2/0-14 AWG |
| Cover Included | Yes |
| Composition | Thermoplastic |
| Protection Rating | IP10 |
| Color | Black |
| Approvals | CE, CSA, UL |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
Description
Power Distribution Blocks, 133 Series
Item #
1331270-CH
Distribution Block, 1-P, 510A, St/Bx
133 Series Information
- 60 to 2280 Amps
- 600 Volts AC/DC
- High SCCRs 35 to 100kA with Fusing or Circuit Breakers
- Snap‑On Cover Type Available
