1333953-CH
Marathon Special Products Power Distribution Blocks, 133 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

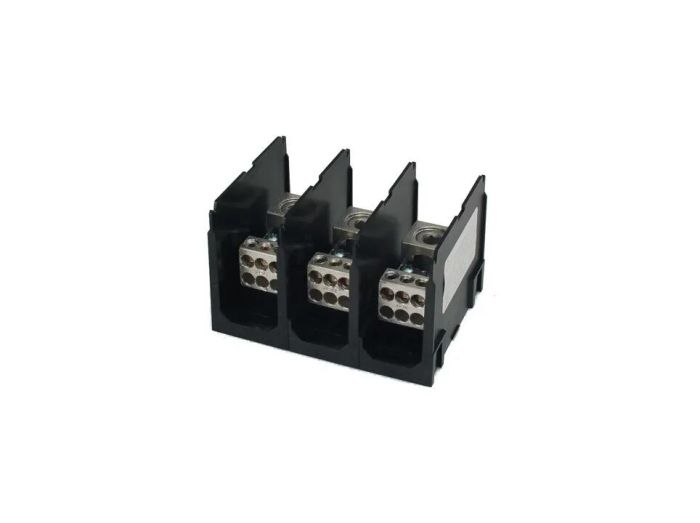

1333953-CH Marathon Special Products Power Distribution Blocks, 133 Series
POWER BLOCK W/HINGE COVER, 3P, 380A,
MFG Item Number
1333953CH
Item Number
1333953-CH
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Power Distribution Blocks, 133 Series
Item #
1333953-CH
POWER BLOCK W/HINGE COVER, 3P, 380A,
133 Series Information
- 60 to 2280 Amps
- 600 Volts AC/DC
- High SCCRs 35 to 100kA with Fusing or Circuit Breakers
- Snap‑On Cover Type Available
Specifications
| Country of Origin | United States |
|---|---|
| Manufacturer Part Number | 1333953CH |
| Manufacturer | Marathon Special Products |
| Product Series | 133 |
| Family Series | Marathon Special Products Power Distribution Blocks, 133 Series |
| Description | POWER BLOCK W/HINGE COVER, 3P, 380A, CU BOX/BOX, LINE: (1)500kcmil - 4AWG LOAD: (6)2 - 14AWG |
| Number of Poles | 3 |
| AC Voltage | 600 VAC |
| Current Rating | 380 A |
| Number of Inputs per Pole | 1 |
| Number of Outputs per Pole | 6 |
| Electrical Connection | Box Lug/Box Lug |
| Mounting | Panel Mount |
| Line Side Wire Range | 500 kcmil-4 AWG |
| Output Wire Range | 2-14 AWG |
| Cover Included | Yes |
| Composition | Thermoplastic |
| Color | Black |
| Approvals | CE, CSA, UL |
| Net Weight | 2.21 lbs |
| Gross Weight | 2.335 lbs |
