Specifications
| Manufacturer Part Number | 1343595 |
|---|---|
| Manufacturer | Marathon Special Products |
| Family Series | Marathon Special Products Power Distribution Blocks |
| Number of Poles | 3 |
| AC Voltage | 600 VAC |
| Current Rating | 420 A |
| Number of Inputs per Pole | 1 |
| Number of Outputs per Pole | 12 |
| Electrical Connection | Box Lug/Box Lug |
| Mounting | Panel Mount |
| Line Side Wire Range | 600 kcmil-2 AWG |
| Output Wire Range | 4-14 AWG |
| Cover Included | No |
| Composition | Thermoplastic |
| Color | Black |
| Approvals | CSA, UL |
| H x W x D | 4.08 " x 5.00 " x 5.64 " |
| Net Weight | 2.73 lbs |
| Gross Weight | 2.73 lbs |
Description
Power Distribution Blocks, Series
Item #
1343595

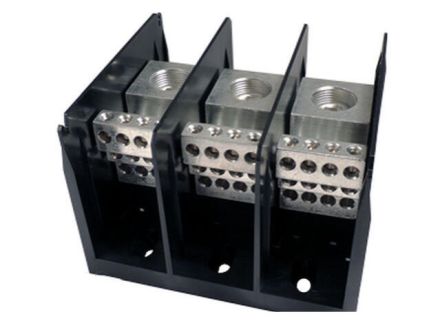

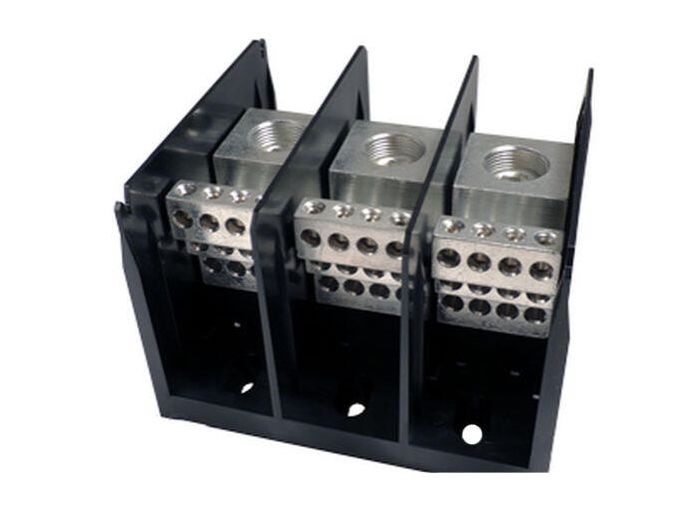

Distribution Block
Series Information
Documents & Resources Links
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Series | Composition | Price | Action |
|---|---|---|---|---|---|---|
|
CH1343 | Protective Cover | Marathon Special Products Terminal Blocks | Non-Metallic |
Price unavailable
|
