Specifications
| Country of Origin | United States |
|---|---|
| Manufacturer Part Number | 1353605CH |
| Manufacturer | Marathon Special Products |
| Product Series | 135 |
| Family Series | Marathon Special Products Power Distribution Blocks, 135 Series |
| Number of Poles | 3 |
| AC Voltage | 600 VAC |
| Current Rating | 950 A |
| Number of Inputs per Pole | 2 |
| Number of Outputs per Pole | 4 |
| Electrical Connection | Box Lug/Box Lug |
| Mounting | Panel Mount |
| Line Side Wire Range | 600 kcmil-2 AWG |
| Output Wire Range | 350 kcmil-4 AWG |
| Cover Included | Yes |
| Composition | Thermoplastic |
| Color | Black |
| Approvals | CE, cUL, UR |
| H x W x D | 4.80 " x 6.05 " x 10.35 " |
| Net Weight | 7.115 lbs |
| Gross Weight | 7.72 lbs |
Description

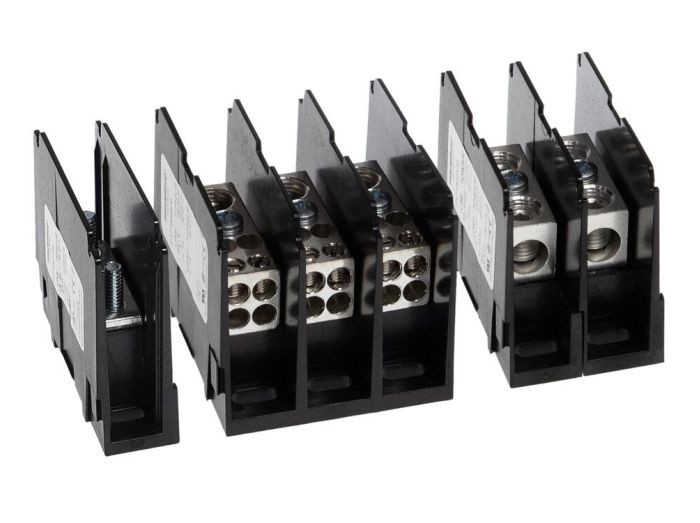

Power Distribution Blocks, 135 Series
Item #
1353605CH
Distribution Block, 3-P w/Cover
135 Series Information
- 60 to 2280 Amps
- 600 Volts AC/DC
- High SCCRs 35 to 100kA with Fusing or Circuit Breakers
- Snap‑On Cover Type Available
