Specifications
| Manufacturer Part Number | 140680.00 |
|---|---|
| Manufacturer | Leeson |
| Product Series | General Purpose |
| Family Series | Leeson Motors, General Purpose Series |
| Type | General Purpose |
| Horsepower | 7-1/2 hp |
| Speed | 3,600 RPM |
| RPM | 3,600 RPM |
| Number of Poles | 2 |
| Phase | 1 |
| NEMA Frame | 213T |
| Nominal Voltage | 208 VAC, 240 VAC |
| Enclosure | Drip Proof |
| Mounting | Foot Mount, Rigid |
| Current Rating | 29.5 A |
| Service Factor | 1.15 |
| Motor Type | Capacitor Start |
| Composition | Steel |
| Bearing Type | Ball |
| Overload Protection | None |
| Length | 16.55 " |
| Approvals | CSA, UL |
| Net Weight | 115 lbs |
| Gross Weight | 115 lbs |
Description

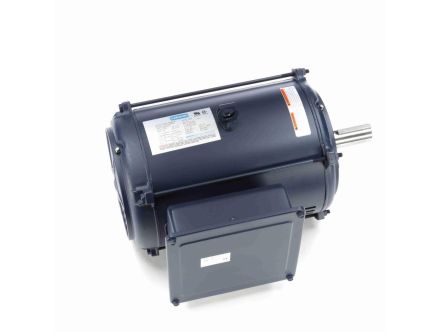

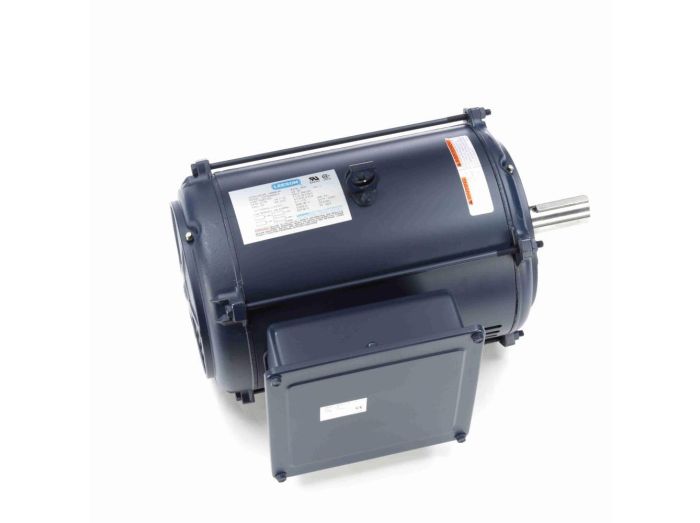

Motors, General Purpose Series
Item #
140680.00
Motor, 7.5HP, 208-230V, 3520RPM DP
General Purpose Series Information
- NEMA Design B performance
- Meets or exceed NEMA service factors
- Double shielded bearings
- Continuous duty
- Thermally protected ratings
- UL recognized component listing and CSA certified
