1418N4K10
Hammond Manufacturing Enclosures, 1418N4 Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

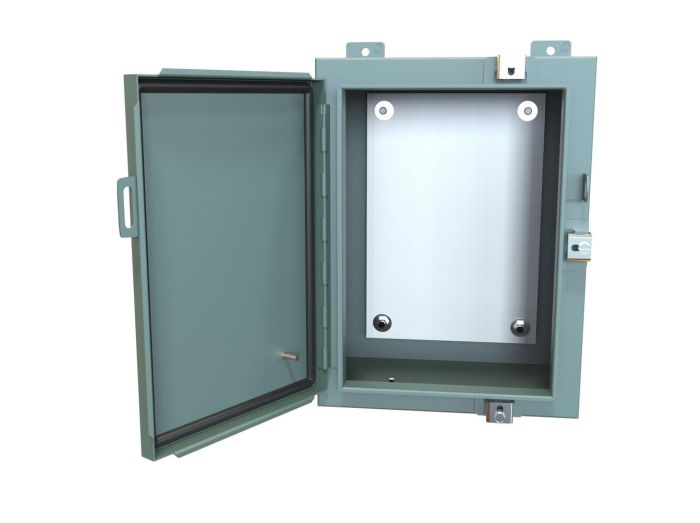

1418N4K10 Hammond Manufacturing Enclosures, 1418N4 Series
30 x 24 x 10
MFG Item Number
1418N4K10
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Enclosures, 1418N4 Series
Item #
1418N4K10
30 x 24 x 10
1418N4 Series Information
- NEMA Types 4 and 4x
- JIC EGP‑1‑1967; IEC 529, IP66
- Fabricated from 14 Gauge Steel
- Welded Brackets Provide for Enclosure Mounting
- A Grounding Stud is Provided in the Enclosure and a Bonding Stud is Provided on the Door
- Removable Inner Panel is Finished in White Enamel
- Oil Resistant Gasket is Permanently Secured and Mechanically Retained
- Collar Studs are Provided for Mounting Inner Panels
Specifications
| Manufacturer Part Number | 1418N4K10 |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Product Series | 1418N4 |
| Family Series | Hammond Manufacturing Enclosures, 1418N4 Series |
| Description | 30 x 24 x 10 STEEL, SINGLE DOOR, PANEL INCLUDED |
| Material | Steel |
| Composition | Metallic |
| Number of Doors | 1 |
| Cover Design | Hinged |
| Window/Clear Cover | No |
| Latching Mechanism | Clamps |
| Panel Included | Yes |
| NEMA Rating | NEMA 12, NEMA 13, NEMA 3R, NEMA 4 |
| Nominal Height | 30 " |
| Nominal Width | 24 " |
| Nominal Depth | 10 " |
| Approvals | CE, CSA, UL |
| H x W x D | 24.00 " x 10.00 " x 30.00 " |
| Net Weight | 91 lbs |
| Gross Weight | 82 lbs |
