Series

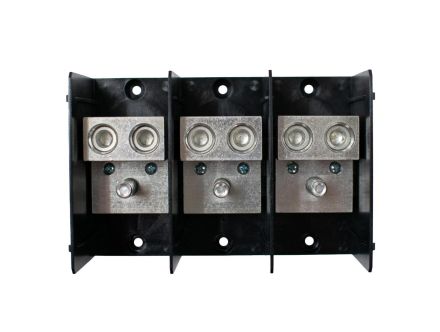

1453610 Marathon Special Products Power Distribution Blocks, 145 Series
MFG #:
1453610
Distribution Block, 3-P, 760A, Bx/St Line: (2)500MCM-4AWG Box Lugs, Load: (1)1/2in.-13x1-5/16in. Stud
Specifications
| Country of Origin | United States |
|---|---|
| Manufacturer Part Number | 1453610 |
| Manufacturer | Marathon Special Products |
| Product Series | 145 |
| Family Series | Marathon Special Products Power Distribution Blocks, 145 Series |
| Number of Poles | 3 |
| AC Voltage | 600 VAC |
| Current Rating | 760 A |
| Number of Inputs per Pole | 2 |
| Number of Outputs per Pole | 1 |
| Electrical Connection | Box Lug/Stud |
| Mounting | Panel Mount |
| Line Side Wire Range | 500 kcmil-4 AWG |
| Output Wire Range | 1/2-13 x 1-5/16 " |
| Cover Included | No |
| Composition | Phenolic |
| Color | Black |
| Approvals | CE, CSA, UL |
| H x W x D | 3.25 " x 5.50 " x 8.50 " |
| Net Weight | 3.47 lbs |
| Gross Weight | 3.47 lbs |
Description
Power Distribution Blocks, 145 Series
Item #
1453610
Distribution Block, 3-P, 760A, Bx/St
145 Series Information
- 60 to 2280 Amps
- 600 Volts AC/DC
- Screw‑On Cover Type Available
