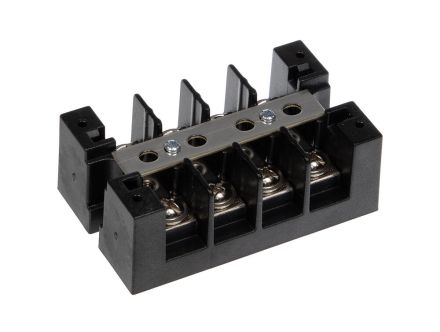

1504RZSC Marathon Special Products Terminal Blocks
MFG #:
1504 RZ SC
Item Number
1504RZSC
Terminal Block, 4-P, 30A/600V Max, Accepts 10-22AWG Wire, 75A MAx w/ Crimp Term, Inclft.s (4) Shorting Pins
Specifications
| Manufacturer Part Number | 1504 RZ SC |
|---|---|
| Manufacturer | Marathon Special Products |
| Family Series | Marathon Special Products Terminal Blocks |
| Number of Poles | 4 |
| Connection Type | Screw Terminals |
| UL Voltage | 600 VAC |
| Current Rating | 30 A |
| Spacing Ctr. - Ctr. | 15.88 mm |
| Color | Black |
| Mounting | Surface Mount |
| Material | Phenolic |
| Number of Rows | 2 |
| Approvals | CE, CSA, UL |
| H x W x D | 1.30 " x 2.00 " x 3.20 " |
| Net Weight | 0.195 lbs |
| Gross Weight | 0.195 lbs |
Description
Terminal Blocks, Series
Item #
1504RZSC
Terminal Block, 4-P, 30A/600V Max
Series Information
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Mounting | Series | Number of Poles | Price | Action |
|---|---|---|---|---|---|---|---|
|
1504SC | Terminal Block, 4-P, 30A/600V Max, Accepts 10-22AWG Wire, 75A MAx w/ Crimp Term, Inclft.s (4) Shorting Pins | Surface Mount | 1500 | 4 |
