Series

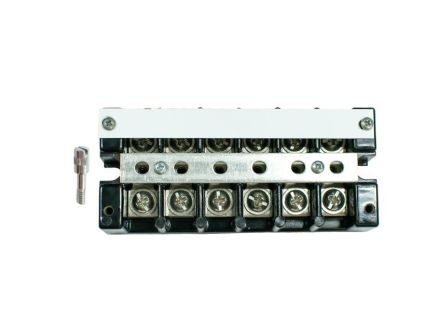

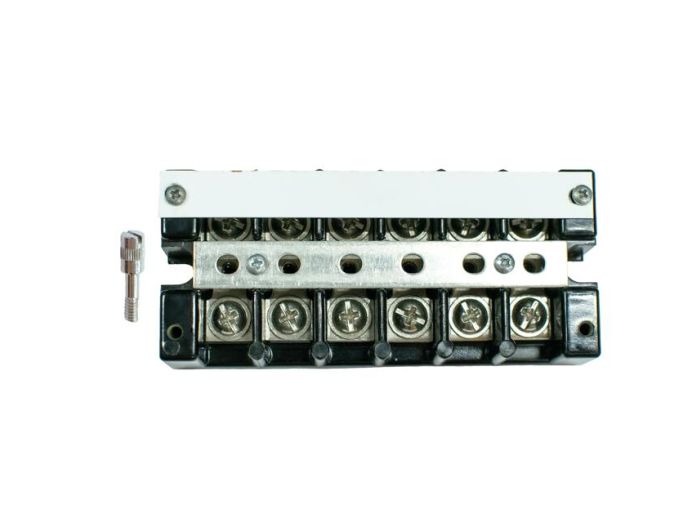

1506SC Marathon Special Products Terminal Blocks, 1500 Series
MFG #:
1506SC
Terminal Block, 6-P, 30A/600V Max, Accepts 10-22AWG Wire, 75A Max w/ Crimp Term, Inclft.s (4) Shorting Pins
Specifications
| Country of Origin | United States |
|---|---|
| Manufacturer Part Number | 1506SC |
| Manufacturer | Marathon Special Products |
| Product Series | 1500 |
| Family Series | Marathon Special Products Terminal Blocks, 1500 Series |
| Number of Poles | 6 |
| Connection Type | Screw Clamp |
| UL Voltage | 600 VAC |
| Wire Size Range | 16-10 AWG |
| Current Rating | 75 A |
| CSA Voltage | 600 VAC |
| IEC Voltage | 600 VAC |
| Spacing Ctr. - Ctr. | 15.88 mm |
| Color | Black |
| Wire Entry Position | Top |
| Mounting | Surface Mount |
| Hole Size | 0.22 " |
| Raised Mounting | No |
| Pluggable | No |
| Approvals | CE, CSA, UR |
| H x W x D | 2.00 " x 1.19 " x 4.50 " |
| Net Weight | 0.49 lbs |
| Gross Weight | 0.49 lbs |
Description
Terminal Blocks, 1500 Series
Item #
1506SC
Terminal Block, 6-P, 30A/600V Max,
1500 Series Information
- 75 Amps with Prepared Wire, 30 Amps with Bare Wire
- 600 Volts AC/DC
- #10‑22 AWG Bare Wire Range
