170145.60
Leeson Motors, Three Phase ODP Series
Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

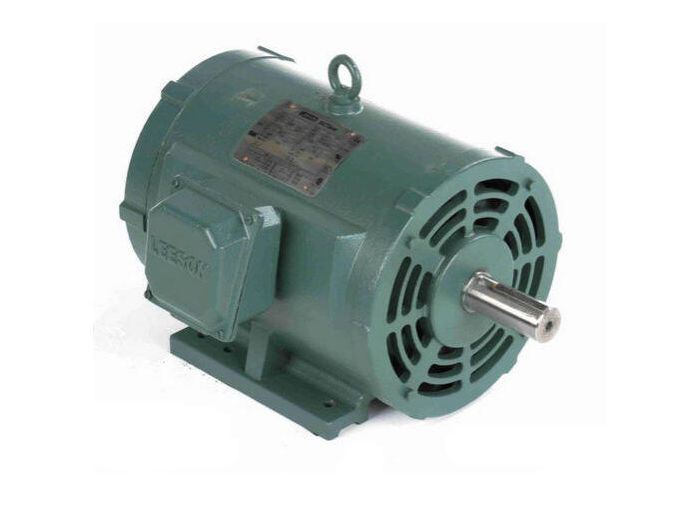

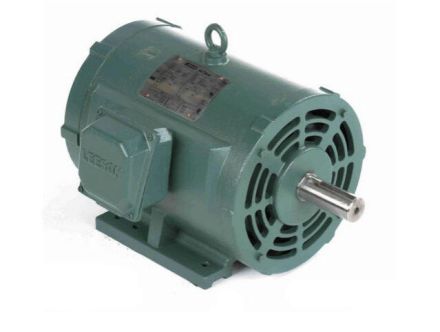

170145.60 Leeson Motors, Three Phase ODP Series
Motor, 7.5HP, 208-230/460V, 1185RPM
MFG Item Number
170145.60
Series
More specs
This item cannot be canceled or returned
Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Description
Motors, Three Phase ODP Series
Item #
170145.60
Motor, 7.5HP, 208-230/460V, 1185RPM
Three Phase ODP Series Information
- Standard, EPACT and Premium efficient ratings
- Inverter‑rated
- Class B insulation systems, Class F 140 frame and higher
- Shielded ball bearings for direct coupled applications
- Rolled steel and cast iron designs
Applications: For use where water and dust exposure is minimal. Ideally suited for use on pumps, compressors, blowers, fans and other standard industrial applications.
- Nameplated for 50 Hz operation
- 1‑year warranty on Standard efficient motors
- 2‑year warranty on EPACT efficient motors
- 3‑year warranty on Premium efficient motors
- UL recognized and CSA certified
Specifications
| Manufacturer Part Number | 170145.60 |
|---|---|
| Manufacturer | Leeson |
| Product Series | Three Phase ODP |
| Family Series | Leeson Motors, Three Phase ODP Series |
| Description | Motor, 7.5HP, 208-230/460V, 1185RPM DP Wattsaver |
| Type | General Purpose |
| Horsepower | 7-1/2 hp |
| Speed | 1,200 RPM |
| RPM | 1,200 RPM |
| Number of Poles | 6 |
| Phase | 3 |
| NEMA Frame | 254T |
| Nominal Voltage | 208 VAC, 240 VAC, 480 VAC |
| Enclosure | Drip Proof |
| Mounting | Foot Mount, Rigid |
| Current Rating | 22.4 A |
| Service Factor | 1.25 |
| Composition | Cast Iron |
| Bearing Type | Ball |
| Length | 20.94 " |
| Approvals | CSA, UL |
| Net Weight | 0 lbs |
| Gross Weight | 0 lbs |
