Product images are for illustration purposes only. Please review specifications and documentation for exact product details.
Series

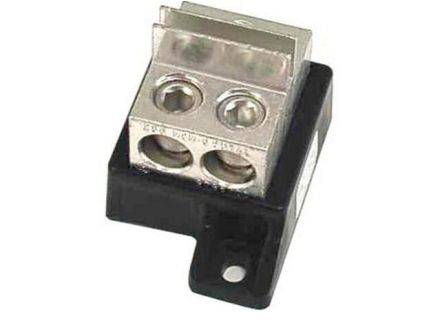

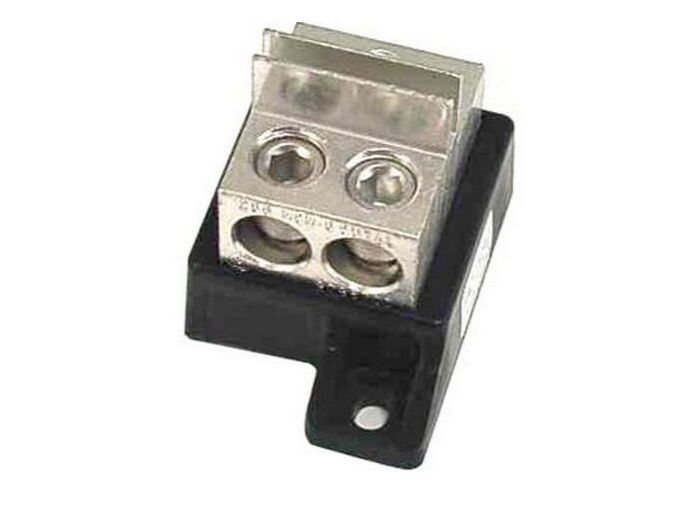

1MS103 Marathon Special Products Fuseblocks & Holders, SEMICONDUCTOR Series
MFG #:
1MS103
Fuseblock, Modular, 400A/600V Max, (2)250MCM-6AWG Box Lug Connection, 5/8in.-16 Bolt Included, 2/Fuse Reqft.d
Specifications
| Manufacturer Part Number | 1MS103 |
|---|---|
| Manufacturer | Marathon Special Products |
| Product Series | SEMICONDUCTOR |
| Family Series | Marathon Special Products Fuseblocks & Holders, SEMICONDUCTOR Series |
| Current Rating | 400 A |
| Voltage | 600 V |
| Poles | 1 |
| Fuse Type | Seminconductor |
| Connection Type | Box Lug |
| Mounting | Panel Mount |
| Composition | Phenolic |
| Trip Indicator | No |
| Reinforced | No |
| Enclosed | No |
| Approvals | UL |
| H x W x D | 2.45 " x 2.25 " x 3.80 " |
| Net Weight | 0.485 lbs |
| Gross Weight | 0.49 lbs |
Description
Fuseblocks & Holders, SEMICONDUCTOR Series
Item #
1MS103
Fuseblock, Modular, 400A/600V Max,
SEMICONDUCTOR Series Information
- 100~800 Amps
- 600 or 1000 Volts
- 1 Pole
- Panel Mount
- Box Lugs or Screw Terminals
