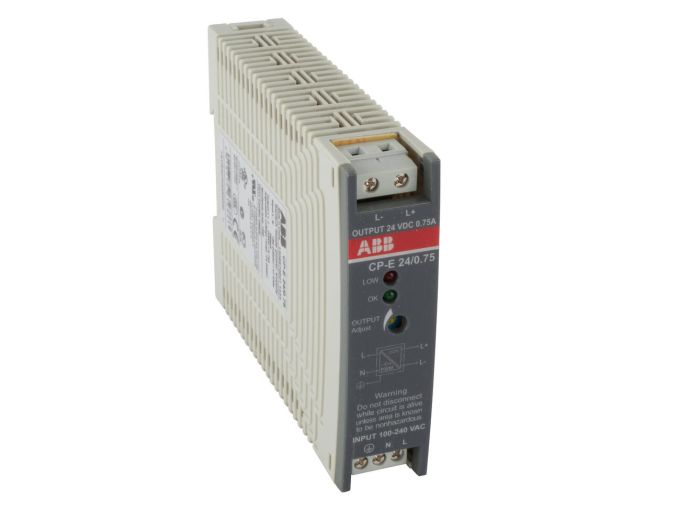

1SVR427030R0000 ABB Power Supplies, CP Series

MFG #:

1SVR427030R0000

The CP-E 24/0.75 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 18 W, rated output current is 0.75

View Full Specs

Skip to the end of the images gallery

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

Skip to the beginning of the images gallery

Series

1SVR427030R0000 ABB Power Supplies, CP Series

MFG #:

1SVR427030R0000

View Full Specs

Request Lead Time

Qty

Compare

This item cannot be canceled or returned

Specifications

Specifications
Manufacturer Part Number	1SVR427030R0000
Manufacturer	ABB
Product Series	CP
Family Series	ABB Power Supplies, CP Series
Power	18 W
Nominal Input Voltage	120 VAC, 208 VAC, 240 VAC
AC Voltage	100-240 VAC
Input Frequency	47-63 Hz
Phase	1
Nominal Output Voltage	24 VDC
Output VDC	24 VDC
Output Current	0.75 A
Number of Outputs	1
Mounting	DIN Rail
Enclosed	Yes
Encapsulated	No
Output Voltage Adj.	No
Overvoltage Protection	No
Overload Protection	Yes
Short Circuit Protection	Yes
Power Factor Correction	No
Parallel Operation	No
Remote Sensing	No
Remote On/Off Control	No
Operating Temperature	14-140 °F
Approvals	CCC, CE, cULus, GOST, UL1310 CLASS 2, UL1604 CLASS 1 DIV 2, UL508, UL60950
H x W x D	1.54 " x 5.28 " x 6.18 "
Net Weight	0.325 lbs
Gross Weight	0.47 lbs
