Series
1SVR730040R3300 ABB Relays, CT-S Series
MFG #:
1SVR730040R3300

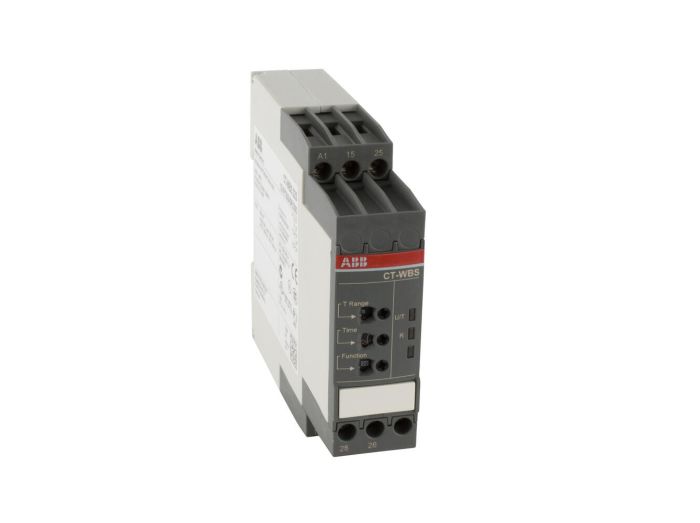

The CT-WBS.22S is an electronic impulse and flasher time relay from the CT-S timer range. It provides 7 timing functions with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 -
Specifications
| Manufacturer Part Number | 1SVR730040R3300 |
|---|---|
| Manufacturer | ABB |
| Product Series | CT-S |
| Family Series | ABB Relays, CT-S Series |
| Operation | Flasher, On Delay, On/Off |
| Contacts | DPDT |
| Mounting | DIN Rail |
| Timing Range | 10 |
| Max Time | 300 Hrs |
| Coil Voltage | 24-240 VAC, 24-48 VDC |
| Nominal Coil Voltage | 24 VAC, 48 VAC, 120 VAC, 208 VAC, 240 VAC, 24 VDC, 48 VDC |
| AC Voltage | 24 VAC, 48 VAC, 120 VAC, 208 VAC, 240 VAC |
| DC Voltage | 24 VDC, 48 VDC |
| Contact Rating | 4 A |
| Termination | Screw Terminals |
| Protection Rating | IP50 |
| Approvals | CSA, UL |
| Comments | CT-WBS.22S |
| H x W x D | 1.18 " x 3.82 " x 4.29 " |
| Net Weight | 0.3402 lbs |
| Gross Weight | 0.34 lbs |
Description
Relays, CT-S Series
Item #
1SVR730040R3300
CT-WBS.22S IMPULSE FLASHER TIMER
CT-S Series Information
