Specifications
| Manufacturer Part Number | 1SVR740100R0300 |
|---|---|
| Manufacturer | ABB |
| Product Series | CT-S |
| Family Series | ABB Relays, CT-S Series |
| Operation | On Delay |
| Contacts | DPDT |
| Mounting | DIN Rail |
| Timing Range | 10 |
| Max Time | 300 Hrs |
| Coil Voltage | 24-240 VAC, 24-240 VDC |
| Nominal Coil Voltage | 24 VAC, 48 VAC, 120 VAC, 208 VAC, 240 VAC |
| AC Voltage | 24 VAC, 48 VAC, 120 VAC, 208 VAC, 240 VAC |
| Contact Rating | 4 A |
| Termination | Screw Terminals |
| Protection Rating | IP50 |
| Approvals | CSA, UL |
| Comments | CT-ERS.21P |
| H x W x D | 1.30 " x 3.85 " x 4.35 " |
| Net Weight | 0.32 lbs |
| Gross Weight | 0.32 lbs |
Description
Relays, CT-S Series
Item #
1SVR740100R0300

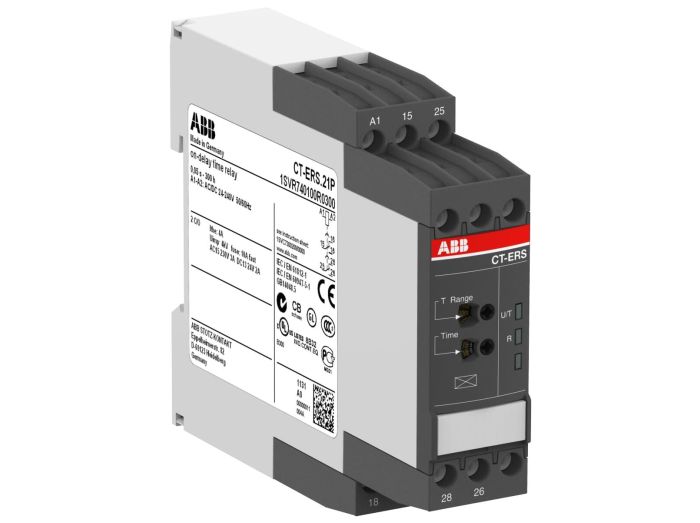

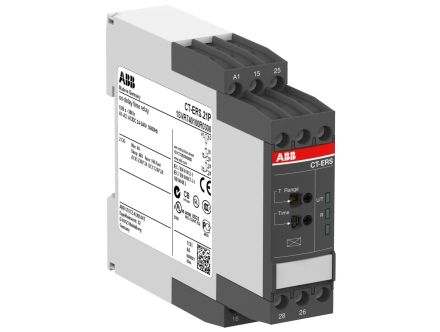

CT-ERS.21P TIME RELAY, ON-DELAY
CT-S Series Information
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Voltage | Mounting | Series | Price | Action |
|---|---|---|---|---|---|---|---|
|
1SVR730100R0300 | The CT-ERS.21S is a single-function electronic time relay from the CT-S timer range. It provides an ON-delay delay on make function with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 240 V | 24 VAC, 48 VAC, 120 VAC, 208 VAC, 240 VAC | DIN Rail | CT-S |
Price unavailable
|
