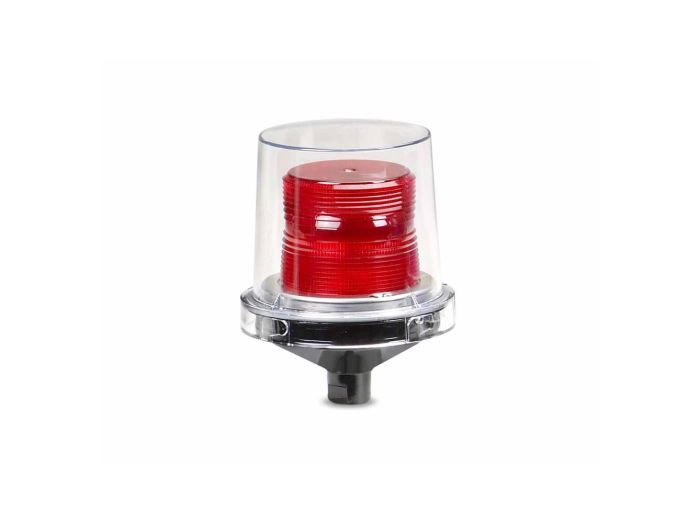

225XL-120-240R Federal Signal Visual Signaling Devices, Electraray 225XL Series

• 24 VAC/VDC or 120/240 VAC
• 4 Lens/Lamp Colors
• 60,000 Hour LED Lamp Life
• Type 4X/IP66 Enclosure
• UL; cUL Listed

The Model 225XL is a hazardous location flashing signal light that features the super bright LED array with XLT, eXtreme Light Technology. The unit is available in 24VAC/DC, 120VAC or 240VAC and four colors ‑ amber, blue, green and red. The 225XL comes standard in flashing mode and is field configurable to steady burn mode for maximum functionality.

The Model 225XL has been certified by UL as meeting Type 4X watertight and corrosion‑resistant requirements, and is rated for Division 2 applications. This hazardous location warning light has a black polyurethane‑coated base and the inner Fresnel lens is
available in four colors ‑ amber, blue green and red. The clear polycarbonate outer dome can be quickly removed for access while changing the lamp or inspecting the unit.

Federal Signal's super bright LED array used in the 225XL with XLT inside produces intense light output and 60,000 hours of service. Increased shock and vibration resistance add to this unit's rugged industrial portfolio of features.

The 225XL is UL Listed for Class I, Division 2, Groups A, B, C and D; Class II Division 2, Groups F and G; and Class III.

The Federal Signal Model 225XL is ideal for wet, corrosive atmospheres like those found in food processing industries or anywhere a vibration‑resistant visual signal is needed.
