Series

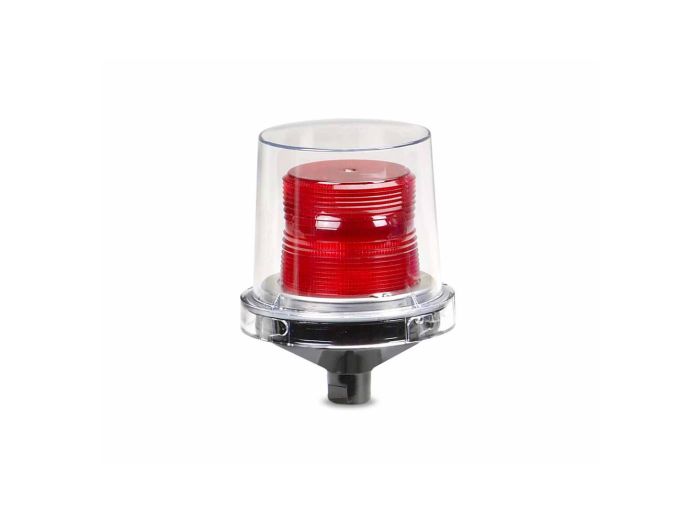

225XST-012-024R Federal Signal Visual Signaling Devices, 225XST Series
MFG #:
225XST-012-024R
Electraray Hazardous Location Strobe Warning Light, 12-24VDC, Red - 12-24VDC, 24VDC, 120VAC and 230-240VAC. Six lens colors: Amber, Blue, Clear, Green, Magenta and Red. 10,000 hour, high-intensity strobe tube. 1/2-inch NPT pipe mount. Indoor/outdoor
Specifications
| Country of Origin | United States |
|---|---|
| Manufacturer Part Number | 225XST-012-024R |
| Manufacturer | Federal Signal |
| Product Series | 225XST |
| Family Series | Federal Signal Visual Signaling Devices, 225XST Series |
| Operation | Strobe |
| Voltage | 12-24 VDC |
| Nominal Voltage | 12 VDC, 24 VDC |
| Color | Red |
| Lamp Type | Strobe |
| Flash Rate/Minute | 80 |
| Mounting | Conduit |
| Hazardous Location | Yes |
| Explosion Proof | No |
| Candlepower | 580,000 |
| Current Rating | 0.7-1.7 A |
| Operating Temperature | -40-149 °F |
| NEMA Rating | NEMA 4X |
| Approvals | CSA, cUL, UL |
| H x W x D | 7.25 " x 7.25 " x 10.00 " |
| Net Weight | 2 lbs |
| Gross Weight | 2 lbs |
Description
Visual Signaling Devices, 225XST Series
Item #
225XST-012-024R
HAZ LOC STROBE WARNING LIGHT 12-24V
225XST Series Information
- 12~24 VDC or 120 VAC/240 VAC
- 6 Lens Colors
- 10,000 Hour Lamp Life
- 1/2 inch Pipe Mount
- UL; cUL; CSA Approvals
The Model 225XST has been certified by UL as meeting Type 4X water tight and corrosion resistant requirements; constructed to IP66 (in dome up orientation). This hazardous location warning light has a black polyurethane coated base and the inner fresnel lens is available in six colors (including magenta). The clear polycarbonate outer dome can be quickly removed for easy access to inspect the unit or change the lamp. The 225XST has an effective candela of 240 and a 580,000 peak candela.
The 24VDC 225XST‑I features a voltage in‑rush limiting PCB design that provides greater compatibility with factory automation control systems and less electrical interference with in‑rush sensitive devices.
The 225XST is UL Listed and CSA Certified for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; and Class III.
Model 225XST is ideal for wet, corrosive atmospheres like those found in food processing industries, or anywhere a visual signal is needed.
Federal Signal's affordable Electraray Strobe Warning Light is specifically designed for use in hazardous locations or where corrosive materials are present.
