33-14043 Meltric Plugs & Receptacles, DS20 Series
Receptacle, 20A, 480V, 3P+G, Poly,
MFG Item Number
33-14043
Meltric

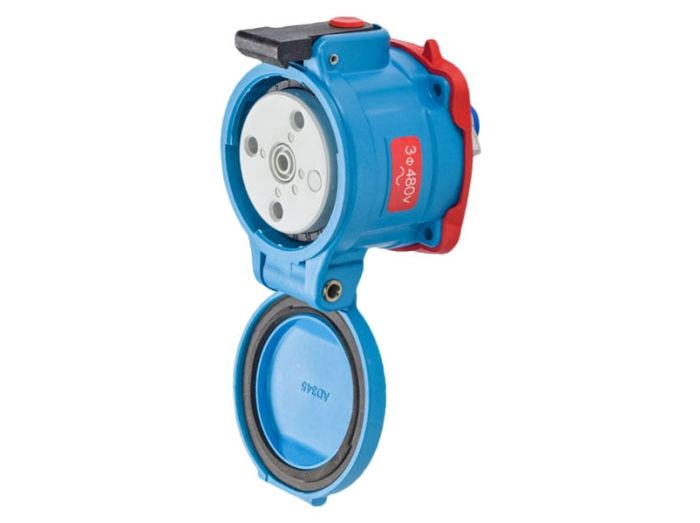

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

33-14043 Meltric Plugs & Receptacles, DS20 Series

Receptacle, 20A, 480V, 3P+G, Poly,
MFG Item Number
33-14043
Meltric
Series
DS20
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Plugs & Receptacles, DS20 Series
Item #
33-14043
Receptacle, 20A, 480V, 3P+G, Poly,

DS20 Series Information

  • 65kA to 100kA Short‑Circuit Rated
  • Metal or Poly Construction
  • Up to 5 Auxiliary Contacts
  • NEMA 3R IP54/IP55
  • 120~600 VAC Versions
  • UL & CSA Switch Rated
  • 20 Amps
DS Series Decontactors provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive, and mining industries. They are designed for applications requiring large wiring capacities. The DS's environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.



Links

Specifications

Specifications
Manufacturer Part Number 33-14043
Manufacturer Meltric
Product Series DS20
Family Series Meltric Plugs & Receptacles, DS20 Series
Description Receptacle, 20A, 480V, 3P+G, Poly, DS20 Decontactor
Connection Type Receptacle
Current Rating 20 A
Voltage 480 V
Frequency 60 Hz
Auxiliary Contact None
Wire Size Range 8 AWG, 14 AWG
Material Non-Metallic
Operating Temperature -40-140 °F
Protection Rating IP55
Terminal Type Screw
Color Code Red
NEMA Rating NEMA 3R
Approvals cCSAus, UL
H x W x D 3.25 " x 2.85 " x 3.75 "
Net Weight 0.6754 lbs
Gross Weight 0.6754 lbs
