Specifications
| Manufacturer Part Number | 33-34072 |
|---|---|
| Manufacturer | Meltric |
| Product Series | DS30 |
| Family Series | Meltric Plugs & Receptacles, DS30 Series |
| Connection Type | Receptacle |
| Current Rating | 30 A |
| Voltage | 250 V |
| Frequency | 60 Hz |
| Auxiliary Contact | None |
| Wire Size Range | 12 AWG, 4 AWG |
| Material | Non-Metallic |
| Operating Temperature | -40-140 °F |
| Protection Rating | IP55 |
| Terminal Type | Screw |
| Color Code | Orange |
| NEMA Rating | NEMA 3R |
| Approvals | cCSAus, UL |
| H x W x D | 3.88 " x 4.14 " x 4.51 " |
| Net Weight | 0.821 lbs |
| Gross Weight | 0.8385 lbs |
Description
Plugs & Receptacles, DS30 Series
Item #
33-34072

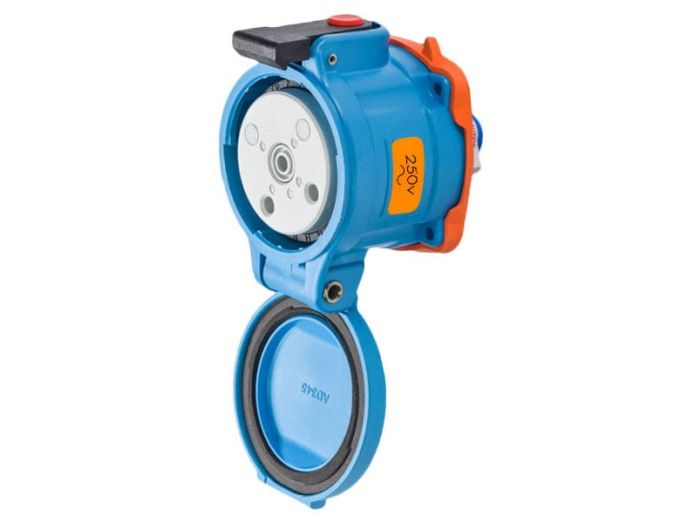

Receptacle, 30A, 2P+G, 250V,
DS30 Series Information
- 65kA to 100kA Short‑Circuit Rated
- Metal or Poly Construction
- Up to 5 Auxiliary Contacts
- NEMA 3R IP54/IP55
- 120~600 VAC Versions
- UL & CSA Switch Rated
- 30 Amps
