Specifications
| Manufacturer Part Number | 33-38043 |
|---|---|
| Manufacturer | Meltric |
| Product Series | DS30 |
| Family Series | Meltric Plugs & Receptacles, DS30 Series |
| Connection Type | Inlet |
| Current Rating | 30 A |
| Voltage | 480 V |
| Frequency | 60 Hz |
| Auxiliary Contact | None |
| Wire Size Range | 12 AWG, 4 AWG |
| Material | Non-Metallic |
| Operating Temperature | -40-140 °F |
| Protection Rating | IP54 |
| Terminal Type | Screw |
| Color Code | Red |
| NEMA Rating | NEMA 3R |
| Approvals | cCSAus, UL |
| H x W x D | 2.80 " x 3.10 " x 3.25 " |
| Net Weight | 0.53 lbs |
| Gross Weight | 0.577 lbs |
Description
Plugs & Receptacles, DS30 Series
Item #
33-38043

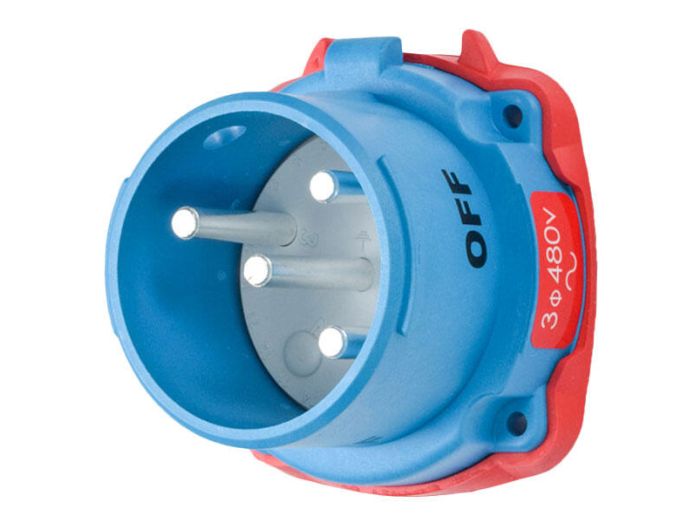

Inlet, 30A, 480V, 3P+G, Poly, DS30
DS30 Series Information
- 65kA to 100kA Short‑Circuit Rated
- Metal or Poly Construction
- Up to 5 Auxiliary Contacts
- NEMA 3R IP54/IP55
- 120~600 VAC Versions
- UL & CSA Switch Rated
- 30 Amps
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Voltage | Series | Connection Type | Price | Action |
|---|---|---|---|---|---|---|---|
|
63-38043 | Inlet, 30A, 480V, 3P+G, Poly, DSN30 Decontactor | 480 VAC | DSN30 | Inlet |
Price unavailable
|
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Voltage | Series | Connection Type | Price | Action |
|---|---|---|---|---|---|---|---|
|
|
31-3A226 | Spring-Loaded Inlet Cap |
Price unavailable
|
||||
|
33-34043 | Receptacle, 30A, 480V, 3P+G, Poly, DS30 Decontactor | 480 V | DS30 | Receptacle |
Price unavailable
|
|
|
DS3PC | Padlockable Poly Cap, for Use with Male/Inlet Device Only |
Price unavailable
|
