Specifications
| Manufacturer Part Number | 33-64072 |
|---|---|
| Manufacturer | Meltric |
| Product Series | DS60 |
| Family Series | Meltric Plugs & Receptacles, DS60 Series |
| Connection Type | Receptacle |
| Current Rating | 60 A |
| Voltage | 250 V |
| Frequency | 60 Hz |
| Auxiliary Contact | None |
| Wire Size Range | 2 AWG, 10 AWG |
| Material | Non-Metallic |
| Operating Temperature | -40-140 °F |
| Protection Rating | IP55 |
| Terminal Type | Screw |
| Color Code | Orange |
| NEMA Rating | NEMA 3R |
| Approvals | cCSAus, UL |
| H x W x D | 4.65 " x 4.30 " x 4.65 " |
| Net Weight | 1.3 lbs |
| Gross Weight | 1.49 lbs |
Description
Plugs & Receptacles, DS60 Series
Item #
33-64072

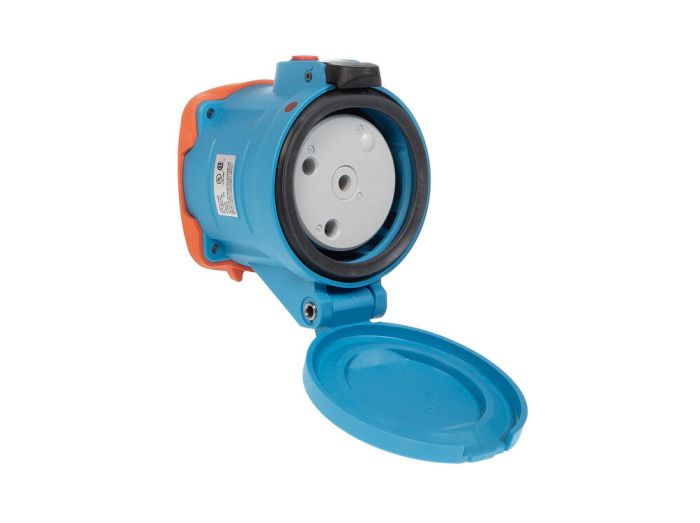

Receptacle, 60A, 250V, 2P+G, Poly,
DS60 Series Information
- 65kA to 100kA Short‑Circuit Rated
- Metal or Poly Construction
- Up to 5 Auxiliary Contacts
- NEMA 3R IP54/IP55
- 120~600 VAC Versions
- UL & CSA Switch Rated
- 60 Amps
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
| Image | Part | Description | Voltage | Series | Connection Type | Price | Action |
|---|---|---|---|---|---|---|---|
|
37-64072 | Receptacle, 60A, 250V, 2P+G, Metal, DS60 | 250 VAC | DS60 | Receptacle |
Price unavailable
|
