Specifications

Specifications
Manufacturer Part Number	33-64163
Manufacturer	Meltric
Product Series	DS60
Family Series	Meltric Plugs & Receptacles, DS60 Series
Connection Type	Receptacle
Current Rating	60 A
Voltage	208 V
Frequency	60 Hz
Auxiliary Contact	None
Wire Size Range	2 AWG, 10 AWG
Material	Non-Metallic
Operating Temperature	-40-140 °F
Protection Rating	IP55
Terminal Type	Screw
Color Code	Blue
NEMA Rating	NEMA 3R
Approvals	cCSAus, UL
H x W x D	4.40 " x 3.85 " x 4.75 "
Net Weight	1.504 lbs
Gross Weight	1.504 lbs

Description

Plugs & Receptacles, DS60 Series

Item #

33-64163

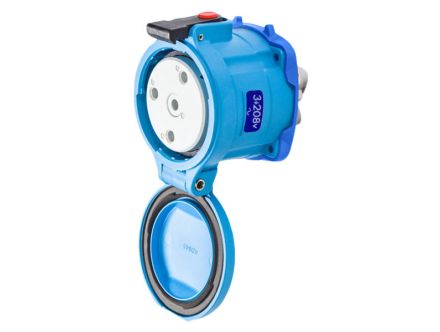

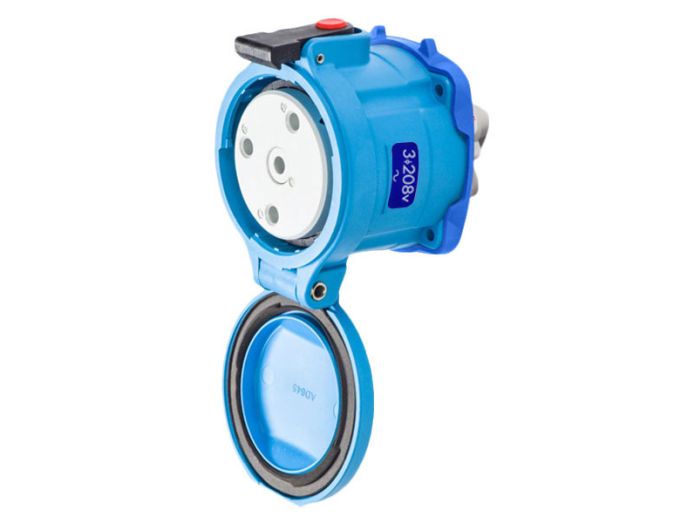

Receptacle, 60A, 208V, 3P+G, Poly,

DS60 Series Information

65kA to 100kA Short‑Circuit Rated
Metal or Poly Construction
Up to 5 Auxiliary Contacts
NEMA 3R IP54/IP55
120~600 VAC Versions
UL & CSA Switch Rated
60 Amps

DS Series Decontactors provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive, and mining industries. They are designed for applications requiring large wiring capacities. The DS's environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.

Documents & Resources

Documents & Resources Links

Alternatives

Compare available alternatives using the specifications that matter for this product.

Alternatives comparison
Image	Part	Description	Voltage	Series	Connection Type	Price	Action
	63-64163	Receptacle, 60A, 208V, 3P+G, Poly, DSN60 Decontactor	208 VAC	DSN60	Receptacle	Price unavailable
	37-64163	Receptacle, 60A, 208V, 3P+G, Metal, DS60	208 VAC	DS60	Receptacle	Price unavailable
