33-64243-C-K04-972 Meltric Plugs & Receptacles, DS100c Series
DS100C RECEPTACLE W/2 PILOTS
MFG Item Number
33-64243-C-K04-972
Meltric

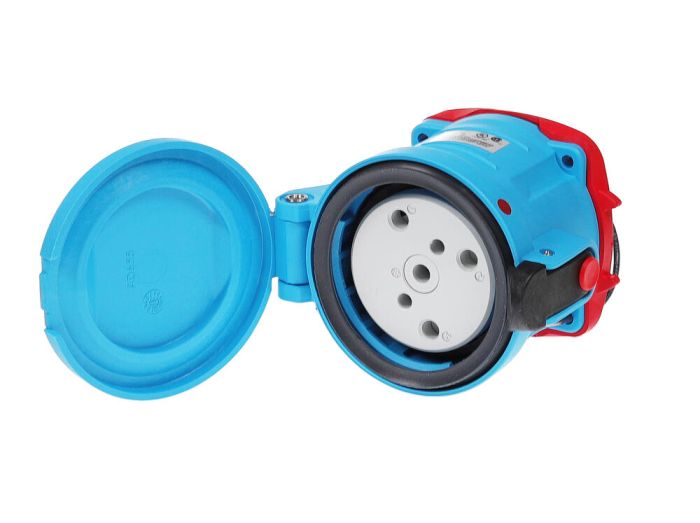

main product photo

Product images are for illustration purposes only. Please review specifications and documentation for exact product details.

33-64243-C-K04-972 Meltric Plugs & Receptacles, DS100c Series

DS100C RECEPTACLE W/2 PILOTS
MFG Item Number
33-64243-C-K04-972
Meltric
Series
DS100C
More specs
This item cannot be canceled or returned

Orders placed by 5:00pm Eastern time will ship today. If you would like to pick up your order, select Will Call during checkout if it is available.
Request Lead Time

Description

Plugs & Receptacles, DS100C Series
Item #
33-64243-C-K04-972
DS100C RECEPTACLE W/2 PILOTS

DS100C Series Information

  • 65kA to 100kA Short‑Circuit Rated
  • Metal or Poly Construction
  • Up to 5 Auxiliary Contacts
  • NEMA 3R IP54/IP55
  • 120~600 VAC Versions
  • UL & CSA Switch Rated
  • 100 Amps
DS Series Decontactors provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive, and mining industries. They are designed for applications requiring large wiring capacities. The DS's environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.



Links

Specifications

Specifications
Manufacturer Part Number 33-64243-C-K04-972
Manufacturer Meltric
Product Series DS100C
Family Series Meltric Plugs & Receptacles, DS100c Series
Description DS100C RECEPTACLE W/2 PILOTS
Connection Type Receptacle
Current Rating 100 A
Voltage 480 V
Frequency 60 Hz
Auxiliary Contact 2
Wire Size Range 2 AWG, 10 AWG
Material Non-Metallic
Operating Temperature -40-140 °F
Protection Rating IP55
Terminal Type Screw
Color Code Red
NEMA Rating NEMA 3R
Approvals cCSAus, UL
H x W x D 4.60 " x 4.25 " x 5.50 "
Net Weight 1.43 lbs
Gross Weight 1.62 lbs
