Specifications
| Manufacturer Part Number | 33-68043 |
|---|---|
| Manufacturer | Meltric |
| Product Series | DS60 |
| Family Series | Meltric Plugs & Receptacles, DS60 Series |
| Connection Type | Inlet |
| Current Rating | 60 A |
| Voltage | 480 V |
| Frequency | 60 Hz |
| Auxiliary Contact | None |
| Wire Size Range | 2 AWG, 10 AWG |
| Material | Non-Metallic |
| Operating Temperature | -40-140 °F |
| Protection Rating | IP54 |
| Terminal Type | Screw |
| Color Code | Red |
| NEMA Rating | NEMA 3R |
| Approvals | cCSAus, UL |
| H x W x D | 3.55 " x 3.80 " x 3.90 " |
| Net Weight | 0.87 lbs |
| Gross Weight | 0.9956 lbs |
Description

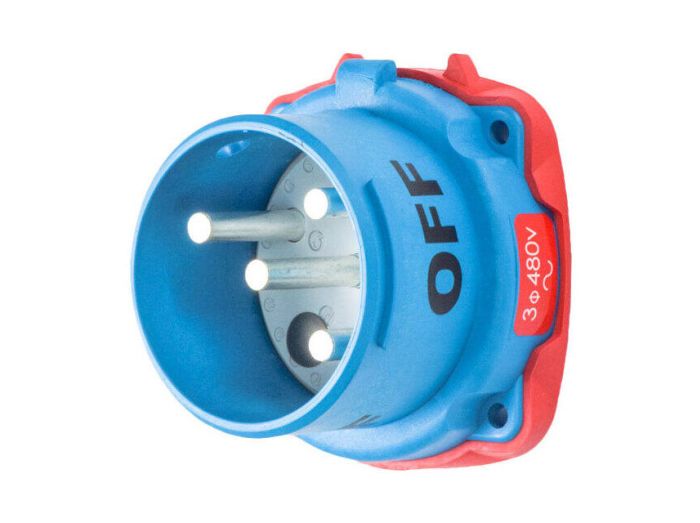

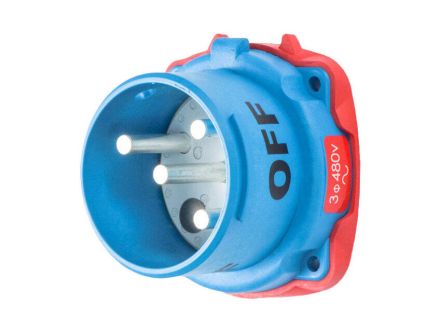

Plugs & Receptacles, DS60 Series
Item #
33-68043
Inlet, 60A, 480V, 3P+G, Poly, DS60
DS60 Series Information
- 65kA to 100kA Short‑Circuit Rated
- Metal or Poly Construction
- Up to 5 Auxiliary Contacts
- NEMA 3R IP54/IP55
- 120~600 VAC Versions
- UL & CSA Switch Rated
- 60 Amps
Documents & Resources Links
Alternatives
Compare available alternatives using the specifications that matter for this product.
Accessories
Compare compatible accessories for this product.
| Image | Part | Description | Voltage | Series | Connection Type | Price | Action |
|---|---|---|---|---|---|---|---|
|
|
31-6A226 | Inlet Cap, Spring-Loaded |
Price unavailable
|
||||
|
33-64043 | Receptacle, 60A, 480V, 3P+G, Poly, DS60 | 480 V | DS60 | Receptacle |
Price unavailable
|
|
|
DS6MC | Padlockable Cap, For Use with Male Devices Only |
Price unavailable
|
||||
|
DS6PC | Poly Plug Cap |
Price unavailable
|
